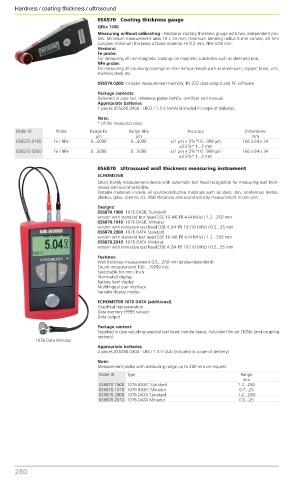

Hardness / coating thickness / ultrasound Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
056570 Coating thickness gauge
QNix 1500
Measuring without calibrating - Electronic coating thickness gauge with two independent pro-
bes. Minimum measurement area 10 x 10 mm, minimum bending radius 5 mm convex, 25 mm
concave, minimum thickness of base material: Fe 0.2 mm, NFe 0.05 mm.
Versions:
Fe probe:
For measuring all non-magnetic coatings on magnetic substrates such as steel and iron.
NFe probe:
For measuring all insulating coatings on non-ferrous metals such as aluminium, copper, brass, zinc,
stainless steel, etc.
056570.0200: includes measurement memory, RS-232 data output and PC software
Package contents:
Delivered in case incl. reference plates Fe/NFe, certificat and manual.
Appropriate batteries:
1 pieces 055050.0400 - LR03 / 1.5 V (AAA) (included in scope of delivery).
Note:
* of the measured value
Order ID Probe Range Fe Range NFe Accuracy Dimensions
µm µm mm
056570.0100 Fe / NFe 0...5000 0...5000 ±(1 µm + 2%*) 0...999 µm 166 x 64 x 34
±3.5%* 1...5 mm
056570.0200 Fe / NFe 0...5000 0...5000 ±(1 µm + 2%*) 0...999 µm 166 x 64 x 34
±3.5%* 1...5 mm
056870 Ultrasound wall thickness measuring instrument
ECHOMETER
Small, handy measurement device with automatic test head recognition for measuring wall thick-
nesses and sound velocities.
Testable materials include all sound-conductive materials such as steel, iron, nonferrous metals,
plastics, glass, ceramic etc. Wall thickness and sound velocity measurement in one unit.
Designs:
056870.1000: 1076 BASIC Standard
version with standard test head DSE 10.4/6 PB 4 (4 MHz) / 1.2...250 mm
056870.1010: 1076 BASIC Miniatur
version with miniature test head DSE 4.2/4 PB 10 (10 MHz) / 0.5...25 mm
056870.2000: 1076 DATA Standard
version with standard test head DSE 10.4/6 PB 4 (4 MHz) / 1.2...250 mm
056870.2010: 1076 DATA Miniatur
version with miniature test head DSE 4.2/4 PB 10 (10 MHz) / 0.5...25 mm
Features:
Wall thickness measurement 0.5…250 mm (probe-dependent)
Sound measurement 100…19999 m/s
Switchable for mm / Inch
Illuminated display
Battery level display
Multilingual user interface
Variable display modes
ECHOMETER 1076 DATA (additional)
Graphical representation
Data memory (9999 values)
Data output
Package content:
Supplied in case including selected test head, handle sleeve, Vulcollan film set (10Stk.)and coupling
material.
1076 Data Miniatur
Appropriate batteries:
2 pieces 055050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
Note:
Measurement probe with measuring range up to 400 mm on request
Order ID Type Range
mm
056870.1000 1076 BASIC Standard 1.2...250
056870.1010 1076 BASIC Miniatur 0.7...25
056870.2000 1076 DATA Standard 1.2...250
056870.2010 1076 DATA Miniatur 0.5...25
