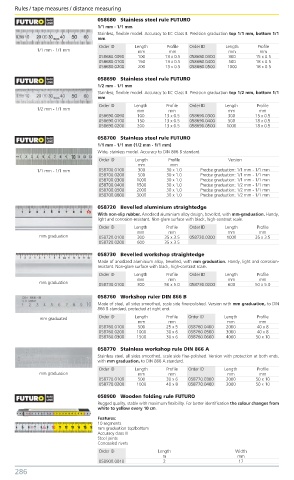

Page 292 - Benma | Blue book 5.0

Rules / tape measures / distance measuring Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
058680 Stainless steel rule FUTURO
1/1 mm - 1/1 mm
Stainless, flexible model. Accuracy to EC Class II. Precision graduation top 1/1 mm, bottom 1/1
mm.
Order ID Length Profile Order ID Length Profile
1/1 mm - 1/1 mm mm mm mm mm
058680.0090 100 13 x 0.5 058680.0300 300 15 x 0.5
058680.0100 150 13 x 0.5 058680.0400 500 18 x 0.5
058680.0200 200 13 x 0.5 058680.0500 1000 18 x 0.5
058690 Stainless steel rule FUTURO
1/2 mm - 1/1 mm
Stainless, flexible model. Accuracy to EC Class II. Precision graduation top 1/2 mm, bottom 1/1
mm.
Order ID Length Profile Order ID Length Profile
1/2 mm - 1/1 mm mm mm mm mm
058690.0090 100 13 x 0.5 058690.0300 300 15 x 0.5
058690.0100 150 13 x 0.5 058690.0400 500 18 x 0.5
058690.0200 200 13 x 0.5 058690.0500 1000 18 x 0.5
058700 Stainless steel rule FUTURO
1/1 mm - 1/1 mm (1/2 mm - 1/1 mm)
Wide, stainless model. Accuracy to DIN 866 B standard.
Order ID Length Profile Version
mm mm
1/1 mm - 1/1 mm 058700.0100 300 30 x 1.0 Precise graduation: 1/1 mm - 1/1 mm
058700.0200 500 30 x 1.0 Precise graduation: 1/1 mm - 1/1 mm
058700.0300 1000 30 x 1.0 Precise graduation: 1/1 mm - 1/1 mm
058700.0400 1500 30 x 1.0 Precise graduation: 1/2 mm - 1/1 mm
058700.0500 2000 30 x 1.0 Precise graduation: 1/2 mm - 1/1 mm
058700.0600 3000 30 x 1.0 Precise graduation: 1/2 mm - 1/1 mm
058720 Bevelled aluminium straightedge
With non-slip rubber. Anodised aluminium alloy design, bevelled, with mm-graduation. Handy,
light and corrosion-resistant. Non-glare surface with black, high-contrast scale.
Order ID Length Profile Order ID Length Profile
mm mm mm mm
mm graduation 058720.0100 300 35 x 3.5 058720.0300 1000 35 x 3.5
058720.0200 600 35 x 3.5
058730 Bevelled workshop straightedge
Made of anodized aluminium alloy, bevelled, with mm graduation. Handy, light and corrosion-
resistant. Non-glare surface with black, high-contrast scale.
Order ID Length Profile Order ID Length Profile
mm mm mm mm
mm graduation 058730.0100 300 50 x 5.0 058730.0200 600 50 x 5.0
058760 Workshop ruler DIN 866 B
Made of steel, all sides smoothed, scale side fine-polished. Version with mm graduation, to DIN
866 B standard, protected at right end.
mm graduated Order ID Length Profile Order ID Length Profile
mm mm mm mm
058760.0100 500 25 x 5 058760.0400 2000 40 x 8
058760.0200 1000 30 x 6 058760.0500 3000 40 x 8
058760.0300 1500 30 x 6 058760.0600 4000 50 x 10
058770 Stainless workshop rule DIN 866 A
Stainless steel, all sides smoothed, scale side fine-polished. Version with protection at both ends,
with mm graduation, to DIN 866 A standard.
Order ID Length Profile Order ID Length Profile
mm graduation mm mm mm mm
058770.0100 500 30 x 6 058770.0300 2000 50 x 10
058770.0200 1000 40 x 8 058770.0400 3000 50 x 10
058900 Wooden folding rule FUTURO
Rugged quality, stable with maximum flexibility. For better identification the colour changes from
white to yellow every 10 cm.
Features:
10 segments
mm graduation top/bottom
Accuracy class III
Steel joints
Concealed rivets
Order ID Length Width
m mm
058900.0010 2 17
286 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
