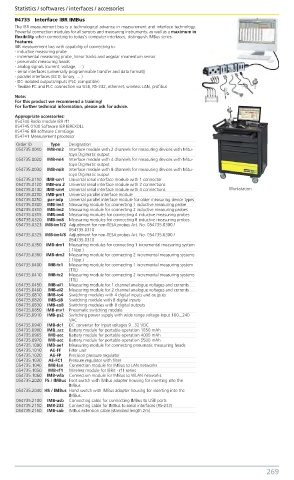

054735 Interface IBR IMBus
The IBR measurement bus is a technological advance in measurement and interface technology.
Powerful connection modules for all sensors and measuring instruments, as well as a maximum in
flexibility when connecting to today‘s computer interfaces, distinguish IMBus series.
Features:
IBR measurement bus with capability of connecting to:
- inductive measuring probe
- incremental measuring probe, linear tracks and angular momentum sensor
- pneumatic measuring heads
- analog signals (current, voltage, ... )
- serial interfaces (universally programmable transfer and data format))
- parallel interfaces (BCD, binary, ... )
- DC-isolated outputs/inputs (PLC compatible)
- flexible PC and PLC connection via USB, RS-232, ethernet, wireless LAN, profibus
Note:
For this product we recommend a training!
For further technical information, please ask for advice.
Appropriate accessories:
054740 Radio module IBR rf1
054745.0100 Software IBR IBREXDLL
054746 IBR software ComGage
054741 Measurement processor
Order ID Type Designation
054735.0010 IMB-mi2 Interface module with 2 channels for measuring devices with Mitu-
toyo Digimatic output
054735.0020 IMB-mi4 Interface module with 4 channels for measuring devices with Mitu-
toyo Digimatic output
054735.0030 IMB-mi8 Interface module with 8 channels for measuring devices with Mitu-
toyo Digimatic output
054735.0110 IMB-sm1 Universal serial interface module with 1 connector
054735.0120 IMB-sm 2 Universal serial interface module with 2 connections
054735.0130 IMB-sm4 Universal serial interface module with 4 connections Workstation
054735.0200 IMB-pm1 Universal parallel interface module
054735.0250 par-adp Universal parallel interface module for older measuring device types
054735.0300 IMB-im1 Measuring module for connecting 1 inductive measuring probe
054735.0310 IMB-im2 Measuring module for connecting 2 inductive measuring probes
054735.0315 IMB-im4 Measuring modules for connecting 4 inductive measuring probes
054735.0320 IMB-im8 Measuring modules for connecting 8 inductive measuring probes
054735.0323 IMB-im1/2 Adjustment for non-TESA probes Art. No. 054735.0300 /
054735.0310
054735.0325 IMB-im4/8 Adjustment for non-TESA probes Art. No. 054735.0300 /
054735.0310
054735.0350 IMB-dm1 Measuring modules for connecting 1 incremental measuring system
( 1Vpp )
054735.0360 IMB-dm2 Measuring module for connecting 2 incremental measuring systems
( 1Vpp )
054735.0400 IMB-tc1 Measuring module for connecting 1 incremental measuring system
(TTL)
054735.0410 IMB-tc2 Measuring module for connecting 2 incremental measuring systems
(TTL)
054735.0450 IMB-ai1 Measuring module for 1 channel analogue voltages and currents
054735.0460 IMB-ai2 Measuring module for 2 channel analogue voltages and currents
054735.0810 IMB-io4 Switching modules with 4 digital inputs and outputs
054735.0820 IMB-ci8 Switching module with 8 digital inputs
054735.0830 IMB-co8 Switching modules with 8 digital outputs
054735.0850 IMB-mv1 Pneumatic switching module
054735.0910 IMB-ps2 Switching power supply with wide range voltage input 100...240
VAC
054735.0940 IMB-dc1 DC converter for input voltages 9...32 VDC
054735.0960 IMB_acc Battery module for portable operation 1850 mAh
054735.0965 IMB-acc Battery module for portable operation 4000 mAh
054735.0970 IMB-acc Battery module for portable operation 5500 mAh
054735.1000 IMB-ae1 Measuring module for connecting pneumatic measuring heads
054735.1010 AE-FF Filter unit
054735.1020 AE-FP Precision pressure regulator
054735.1030 AE-FC1 Pressure regulator with filter
054735.1040 IMB-lan Connection module for IMBus to LAN networks
054735.1050 IMB-rf1 Wireless module for IBRit - rf1 series
054735.1060 IMB-wla Connection module for IMBus to WLAN networks
054735.2020 FS / IMBus Foot switch with IMBus adapter housing for inserting into the
IMBus.
054735.2040 HS / IMBus Hand switch with IMBus adapter housing for inserting into the
IMBus.
054735.2100 IMB-usb Connecting cable for connecting IMBus to USB ports
054735.2110 IMB-232 Connecting cable for IMBus to serial interfaces (RS-232)
054735.2150 IMB-cab IMBus extension cable (standard length 2m)
