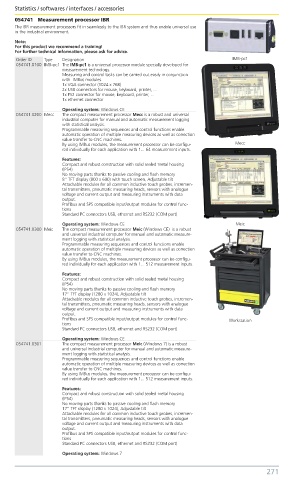

054741 Measurement processor IBR
The IBR measurement processors fit in seamlessly to the IBR system and thus enable universal use
in the industrial environment.
Note:
For this product we recommend a training!
For further technical information, please ask for advice.
Order ID Type Designation IMB-pc1
054741.0100 IMB-pc1 The IMB-pc1 is a universal processor module specially developed for
measurement technology.
Measuring and control tasks can be carried out easily in conjunction
with IMBus modules.
1x VGA connector (1024 x 768)
2x USB connectors for mouse, keyboard, printer, ...
1x PS2 connector for mouse, keyboard, printer, ...
1x ethernet connector
Operating system: Windows CE
054741.0200 Mecc The compact measurement processor Mecc is a robust and universal
industrial computer for manual and automatic measurement logging
with statistical analysis.
Programmable measuring sequences and control functions enable
automatic operation of multiple measuring devices as well as correction
value transfer to CNC machines.
By using IMBus modules, the measurement processor can be configu- Mecc
red individually for each application with 1... 64 measurement inputs.
Features:
Compact and robust construction with solid sealed metal housing
(IP54)
No moving parts thanks to passive cooling and flash memory
8“ TFT display (800 x 600) with touch screen, Adjustable tilt
Attachable modules for all common inductive touch probes, incremen-
tal transmitters, pneumatic measuring heads, sensors with analogue
voltage and current output and measuring instruments with data
output.
Profibus and SPS compatible input/output modules for control func-
tions
Standard PC connectors USB, ethernet and RS232 (COM port)
Operating system: Windows CE Meic
054741.0300 Meic The compact measurement processor Meic (Windows CE) is a robust
and universal industrial computer for manual and automatic measure-
ment logging with statistical analysis.
Programmable measuring sequences and control functions enable
automatic operation of multiple measuring devices as well as correction
value transfer to CNC machines.
By using IMBus modules, the measurement processor can be configu-
red individually for each application with 1... 512 measurement inputs.
Features:
Compact and robust construction with solid sealed metal housing
(IP54)
No moving parts thanks to passive cooling and flash memory
17“ TFT display (1280 x 1024), Adjustable tilt
Attachable modules for all common inductive touch probes, incremen-
tal transmitters, pneumatic measuring heads, sensors with analogue
voltage and current output and measuring instruments with data
output.
Profibus and SPS compatible input/output modules for control func- Workstation
tions
Standard PC connectors USB, ethernet and RS232 (COM port)
Operating system: Windows CE
054741.0301 The compact measurement processor Meic (Windows 7) is a robust
and universal industrial computer for manual and automatic measure-
ment logging with statistical analysis.
Programmable measuring sequences and control functions enable
automatic operation of multiple measuring devices as well as correction
value transfer to CNC machines.
By using IMBus modules, the measurement processor can be configu-
red individually for each application with 1... 512 measurement inputs.
Features:
Compact and robust construction with solid sealed metal housing
(IP54)
No moving parts thanks to passive cooling and flash memory
17“ TFT display (1280 x 1024), Adjustable tilt
Attachable modules for all common inductive touch probes, incremen-
tal transmitters, pneumatic measuring heads, sensors with analogue
voltage and current output and measuring instruments with data
output.
Profibus and SPS compatible input/output modules for control func-
tions
Standard PC connectors USB, ethernet and RS232 (COM port)
Operating system: Windows 7
