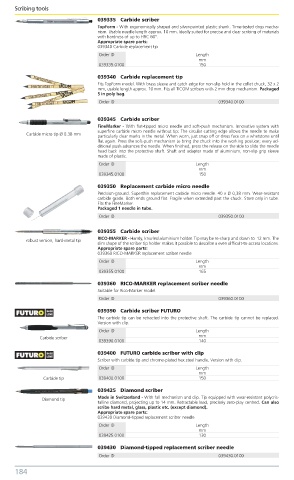

Page 189 - Benma | Blue book 5.0

Scribing tools Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
039335 Carbide scriber
TopForm - With ergonomically shaped and silver-painted plastic shank. Time-tested drop mecha-
nism. Usable needle length approx. 10 mm. Ideally suited for precise and clear scribing of materials
with hardness of up to HRC 60°.
Appropriate spare parts:
039340 Carbide replacement tip
Order ID Length
mm
039335.0100 150
039340 Carbide replacement tip
Fits TopForm model. With brass sleeve and catch edge for non-slip hold in the collet chuck, 32 x 2
mm, usable length approx. 10 mm. Fits all TICOM scribers with 2 mm drop mechanism. Packaged
5 in poly bag.
Order ID 039340.0100

039345 Carbide scriber
FineMarker - With flat-tipped micro needle and soft-push mechanism. Innovative system with
superfine carbide micro needle without tip: The circular cutting edge allows the needle to make
Carbide micro tip Ø 0.38 mm particularly clear marks in the metal. When worn, just snap off or dress face on a whetstone until
flat again. Press the soft-push mechanism to bring the chuck into the working position; every ad-
ditional push advances the needle. When finished, press the release on the side to slide the needle
head back into the protective shaft. Shaft and adapter made of aluminium, non-slip grip sleeve
made of plastic.
Order ID Length
mm
039345.0100 150
039350 Replacement carbide micro needle
Precision-ground. Superthin replacement carbide micro needle. 40 x Ø 0,38 mm. Wear-resistant
carbide grade. Both ends ground flat. Fragile when extended past the chuck. Store only in tube.
Fits the FineMarker.
Packaged 1 needle in tube.
Order ID 039350.0100

039355 Carbide scriber
robust version, hard-metal tip RICO-MARKER - Handy, knurled aluminium holder. Tip may be re-sharp and down to 12 mm. The
slim shape of the scriber tip holder makes it possible to describe a even difficult-to-access locations.
Appropriate spare parts:
039360 RICO-MARKER replacement scriber needle
Order ID Length
mm
039355.0100 165
039360 RICO-MARKER replacement scriber needle
Suitable for Rico-Marker model.
Order ID 039360.0100

039390 Carbide scriber FUTURO
The carbide tip can be retracted into the protective shaft. The carbide tip cannot be replaced.
Version with clip.
Order ID Length
Carbide scriber mm
039390.0100 140
039400 FUTURO carbide scriber with clip
Scriber with carbide tip and chrome-plated hex steel handle. Version with clip.
Order ID Length
mm
Carbide tip 039400.0100 150

039425 Diamond scriber
Diamond tip Made in Switzerland - With fall mechanism and clip. Tip equipped with wear-resistant polycris-
talline diamond, projecting up to 14 mm. Retractable lead, precisely zero-play centred. Can also
scribe hard metal, glass, plastic etc. (except diamond).
Appropriate spare parts:
039430 Diamond-tipped replacement scriber needle
Order ID Length
mm
039425.0100 130
039430 Diamond-tipped replacement scriber needle
Order ID 039430.0100
