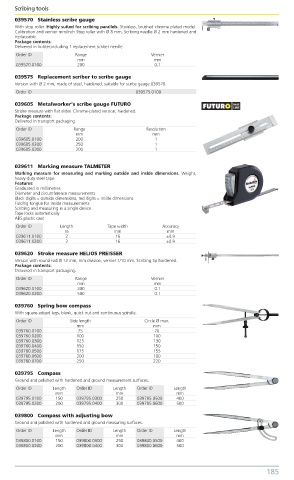

Page 190 - Benma | Blue book 5.0

Scribing tools Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
039570 Stainless scribe gauge
With stop roller. Highly suited for scribing parallels. Stainless, brushed chrome plated model.
Calibration and vernier mm/inch Stop roller with Ø 8 mm, Scribing needle Ø 2 mm hardened and
replaceable.
Package contents:
Delivered in holster,including 1 replacement scriber needle.
Order ID Range Vernier
mm mm
039570.0100 200 0.1
039575 Replacement scriber to scribe gauge
Version with Ø 2 mm, made of steel, hardened, suitable for scribe gauge 039570.
Order ID 039575.0100
039605 Metalworker‘s scribe gauge FUTURO
Stroke measure with flat slider. Chrome-plated version, hardened.
Package contents:
Delivered in transport packaging.
Order ID Range Resolution
mm mm
039605.0100 200 1
039605.0200 250 1
039605.0300 300 1

039611 Marking measure TALMETER
Marking measure for measuring and marking outside and inside dimensions. Weight,
heavy-duty steel tape.
Features:
Graduated in millimetres
Diameter and circumference measurements
Black digits = outside dimensions, red digits = inside dimensions
Folding tongue for inside measurements
Scribing and measuring in a single device
Tape locks automatically
ABS plastic case
Order ID Length Tape width Accuracy
m mm mm
039611.0100 2 16 ±0.9
039611.0200 3 16 ±0.9
039620 Stroke measure HELIOS PREISSER
Version with round rod Ø 12 mm, mm division, vernier 1/10 mm. Scribing tip hardened.
Package contents:
Delivered in transport packaging.
Order ID Range Vernier
mm mm
039620.0100 300 0.1
039620.0200 500 0.1

039760 Spring bow compass
With square-edged legs, blank, quick nut and continuous spindle.
Order ID Side length Circle Ø max.
mm mm
039760.0100 75 70
039760.0200 100 100
039760.0300 125 130
039760.0400 150 150
039760.0500 175 155
039760.0600 200 180
039760.0700 250 220
039795 Compass
Ground and polished with hardened and ground measurement surfaces.
Order ID Length Order ID Length Order ID Length
mm mm mm
039795.0100 150 039795.0300 250 039795.0500 400
039795.0200 200 039795.0400 300 039795.0600 500
039800 Compass with adjusting bow
Ground and polished with hardened and ground measuring surfaces.
Order ID Length Order ID Length Order ID Length
mm mm mm
039800.0100 150 039800.0300 250 039800.0500 400
039800.0200 200 039800.0400 300 039800.0600 500
