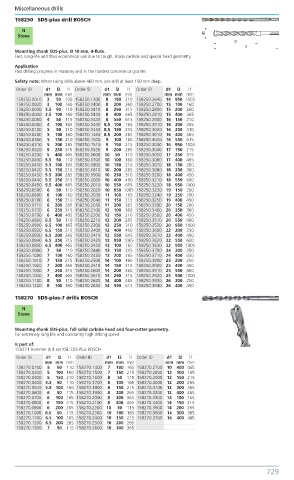

Page 738 - Benma | Blue book 5.0

Miscellaneous drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
158250 SDS-plus drill BOSCH

N
Stone

Mounting shank SDS-plus, Ø 10 mm, 4-flute.
Fast, long-life and thus economical use due to tough, sharp carbide and special head geometry.
Application
Fast drilling progress in masonry and in the hardest concrete or granite.
Safety note: When using drills above 460 mm, pre-drill at least 150 mm deep.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm
158250.0010 3 50 100 158250.1300 8 150 210 158250.2640 14 950 1005
158250.0020 3 100 160 158250.1400 8 200 260 158250.2700 15 100 160
158250.0030 3.5 50 110 158250.1410 8 250 315 158250.2800 15 200 260
158250.0040 3.5 100 160 158250.1420 8 400 465 158250.2810 15 400 465
158250.0050 4 50 115 158250.1430 8 550 615 158250.2900 16 150 210
158250.0060 4 100 165 158250.1440 8.5 100 165 158250.2910 16 200 265
158250.0100 5 50 110 158250.1450 8.5 150 215 158250.3000 16 250 310
158250.0200 5 100 160 158250.1460 8.5 200 265 158250.3010 16 400 465
158250.0300 5 150 210 158250.1500 9 100 160 158250.3020 16 550 615
158250.0310 5 200 265 158250.1510 9 150 215 158250.3030 16 950 1005
158250.0320 5 250 315 158250.1520 9 200 265 158250.3040 17 150 215
158250.0330 5 400 465 158250.1600 10 50 110 158250.3050 17 250 315
158250.0400 5.5 50 110 158250.1700 10 100 160 158250.3060 17 400 465
158250.0410 5.5 100 165 158250.1800 10 150 210 158250.3070 18 150 200
158250.0420 5.5 150 215 158250.1810 10 200 265 158250.3080 18 250 300
158250.0430 5.5 200 265 158250.1900 10 250 310 158250.3200 18 400 450
158250.0440 5.5 250 315 158250.2000 10 400 460 158250.3210 18 550 600
158250.0450 5.5 400 465 158250.2010 10 550 615 158250.3220 18 950 1000
158250.0500 6 50 110 158250.2020 10 950 1005 158250.3230 19 150 200
158250.0600 6 100 160 158250.2030 11 100 165 158250.3240 19 250 300
158250.0700 6 150 210 158250.2040 11 150 215 158250.3250 19 400 450
158250.0710 6 200 265 158250.2050 11 200 265 158250.3300 20 150 200
158250.0720 6 250 315 158250.2100 12 100 160 158250.3400 20 250 300
158250.0730 6 400 465 158250.2200 12 150 210 158250.3500 20 400 450
158250.0800 6.5 50 110 158250.2210 12 200 265 158250.3510 20 550 600
158250.0810 6.5 100 165 158250.2300 12 250 310 158250.3520 20 950 1000
158250.0820 6.5 150 215 158250.2400 12 400 460 158250.3600 22 200 250
158250.0830 6.5 200 265 158250.2410 12 550 615 158250.3610 22 400 450
158250.0840 6.5 250 315 158250.2420 12 950 1005 158250.3620 22 550 600
158250.0850 6.5 400 465 158250.2430 13 100 165 158250.3630 22 950 1000
158250.0900 7 50 110 158250.2440 13 150 215 158250.3700 24 200 250
158250.1000 7 100 160 158250.2450 13 200 265 158250.3710 24 400 450
158250.1010 7 150 215 158250.2500 14 100 160 158250.3800 25 200 250
158250.1020 7 200 265 158250.2510 14 150 215 158250.3900 25 400 450
158250.1030 7 250 315 158250.2600 14 200 260 158250.3910 25 550 600
158250.1040 7 400 465 158250.2610 14 250 315 158250.3920 25 950 1000
158250.1100 8 50 110 158250.2620 14 400 465 158250.3930 26 200 250
158250.1200 8 100 160 158250.2630 14 550 615 158250.3940 26 400 450
158270 SDS-plus-7 drills BOSCH
N
Stone

Mounting shank SDS-plus, full solid carbide head and four-cutter geometry.
For extremely long life and constantly high drilling speed.
Is part of:
158271 Hammer drill set X5L SDS-Plus BOSCH
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm
158270.0100 5 50 110 158270.1400 7 100 165 158270.2700 10 400 465
158270.0200 5 100 160 158270.1500 7 150 215 158270.2800 12 100 165
158270.0300 5 150 210 158270.1600 8 50 115 158270.2900 12 150 215
158270.0400 5.5 50 110 158270.1700 8 100 165 158270.3000 12 200 265
158270.0500 5.5 100 160 158270.1800 8 150 215 158270.3100 12 300 365
158270.0600 6 50 115 158270.1900 8 200 265 158270.3200 12 400 465
158270.0700 6 100 165 158270.2000 8 300 365 158270.3300 14 100 165
158270.0800 6 150 215 158270.2100 8 400 465 158270.3400 14 150 215
158270.0900 6 200 265 158270.2200 10 50 115 158270.3500 14 200 265
158270.1000 6.5 50 115 158270.2300 10 100 165 158270.3600 14 300 365
158270.1100 6.5 100 165 158270.2400 10 150 215 158270.3700 14 400 465
158270.1200 6.5 200 265 158270.2500 10 200 265
158270.1300 7 50 115 158270.2600 10 300 365

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 729
