Miscellaneous drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

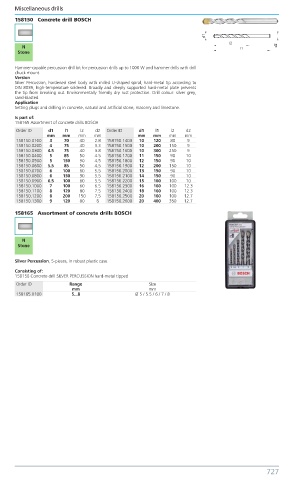

158150 Concrete drill BOSCH

N
Stone

Hammer-capable percussion drill bit for percussion drills up to 1000 W and hammer drills with drill
chuck mount.
Version
Silver Percussion, hardened steel body with milled U-shaped spiral, hard-metal tip according to
DIN 8039, high-temperature soldered. Broadly and deeply supported hard-metal plate prevents
the tip from breaking out. Environmentally friendly dry rust protection. Drill colour: silver grey,
sand-blasted.
Application
Setting plugs and drilling in concrete, natural and artificial stone, masonry and limestone.
Is part of:
158165 Assortment of concrete drills BOSCH
Order ID d1 l1 l2 d2 Order ID d1 l1 l2 d2
mm mm mm mm mm mm mm mm
158150.0100 3 70 40 2.8 158150.1400 10 120 80 9
158150.0200 4 75 40 3.3 158150.1500 10 200 150 9
158150.0300 4.5 75 40 3.8 158150.1600 10 300 250 9
158150.0400 5 85 50 4.5 158150.1700 11 150 90 10
158150.0500 5 150 90 4.5 158150.1800 12 150 90 10
158150.0600 5.5 85 50 4.5 158150.1900 12 200 150 10
158150.0700 6 100 60 5.5 158150.2000 13 150 90 10
158150.0800 6 150 90 5.5 158150.2100 14 150 90 10
158150.0900 6.5 100 60 5.5 158150.2200 15 160 100 10
158150.1000 7 100 60 6.5 158150.2300 16 160 100 12.3
158150.1100 8 120 80 7.5 158150.2400 18 160 100 12.3
158150.1200 8 200 150 7.5 158150.2500 20 160 100 12.7
158150.1300 9 120 80 8 158150.2600 20 400 350 12.7
158165 Assortment of concrete drills BOSCH

N
Stone

Silver Percussion, 5-pieces, in robust plastic case.
Consisting of:
158150 Concrete drill SILVER PERCUSSION hard-metal tipped
Order ID Range Size
mm mm
158165.0100 5...8 Ø 5 / 5.5 / 6 / 7 / 8

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 727
