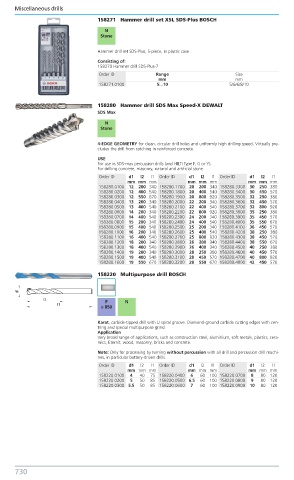

Page 739 - Benma | Blue book 5.0

Miscellaneous drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
158271 Hammer drill set X5L SDS-Plus BOSCH

N
Stone

Hammer drill set SDS-Plus, 5-piece, in plastic case
Consisting of:
158270 Hammer drill SDS-Plus-7
Order ID Range Size
mm mm
158271.0100 5...10 5/6/6/8/10

158280 Hammer drill SDS Max Speed-X DEWALT
SDS Max
N
Stone

4-EDGE GEOMETRY for clean, circular drill holes and uniformly high drilling speed. Virtually pre-
cludes the drill from catching in reinforced concrete.
USE
For use in SDS-max percussion drills (and HILTI Type F, G or Y).
For drilling concrete, masonry, natural and artificial stone.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm
158280.0100 12 200 340 158280.1700 20 200 340 158280.3300 30 250 380
158280.0200 12 400 540 158280.1800 20 400 540 158280.3400 30 450 570
158280.0300 12 550 670 158280.1900 20 800 920 158280.3500 32 250 380
158280.0400 13 200 340 158280.2000 22 200 340 158280.3600 32 450 570
158280.0500 13 400 540 158280.2100 22 400 540 158280.3700 32 800 920
158280.0600 14 200 340 158280.2200 22 800 920 158280.3800 35 250 380
158280.0700 14 400 540 158280.2300 24 200 340 158280.3900 35 450 570
158280.0800 15 200 340 158280.2400 24 400 540 158280.4000 35 550 670
158280.0900 15 400 540 158280.2500 25 200 340 158280.4100 36 450 570
158280.1000 16 200 340 158280.2600 25 400 540 158280.4200 38 250 380
158280.1100 16 400 540 158280.2700 25 800 920 158280.4300 38 450 570
158280.1200 18 200 340 158280.2800 26 200 340 158280.4400 38 550 670
158280.1300 18 400 540 158280.2900 26 400 340 158280.4500 40 250 380
158280.1400 19 200 340 158280.3000 28 250 380 158280.4600 40 450 570
158280.1500 19 400 540 158280.3100 28 450 570 158280.4700 40 800 920
158280.1600 19 550 670 158280.3200 28 550 670 158280.4800 42 450 570
158220 Multipurpose drill BOSCH

P N
≤ 850

Karat, carbide-tipped drill with U spiral groove. Diamond-ground carbide cutting edges with cen-
tring and special multipurpose grind.
Application
Very broad range of applications, such as construction steel, aluminium, soft metals, plastics, cera-
mics, Eternit, wood, masonry, bricks and concrete.
Note: Only for processing by turning without percussion with all drill and percussion drill machi-
nes, in particular battery-driven drills.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm
158220.0100 4 40 75 158220.0400 6 60 100 158220.0700 8 80 120
158220.0200 5 50 85 158220.0500 6.5 60 100 158220.0800 9 80 120
158220.0300 5.5 50 85 158220.0600 7 60 100 158220.0900 10 80 120

730 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
