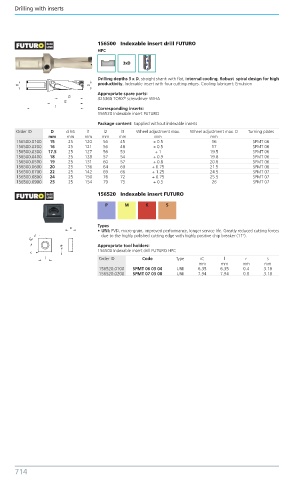

Drilling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

1 56500 Indexable insert drill FUTURO
HPC
3xD

Drilling depths 3 x D, straight shank with flat, internal cooling, Robust spiral design for high
productivity. Indexable insert with four cutting edges. Cooling lubricant: Emulsion
Appropriate spare parts:
325360 TORX screwdriver WIHA
®
Corresponding inserts:
156520 Indexable insert FUTURO
Package content: Supplied without indexable inserts
Order ID D d h6 l1 l2 l3 Wheel adjustment max. Wheel adjustment max. D Turning plates
mm mm mm mm mm mm mm
156500.0100 15 25 120 56 45 + 0.5 16 SPMT 06
156500.0200 16 25 121 56 48 + 0.5 17 SPMT 06
156500.0300 17.5 25 127 56 53 + 1 19.5 SPMT 06
156500.0400 18 25 128 57 54 + 0.9 19.8 SPMT 06
156500.0500 19 25 131 60 57 + 0.8 20.6 SPMT 06
156500.0600 20 25 136 64 60 + 0.75 21.5 SPMT 06
156500.0700 22 25 142 69 66 + 1.25 24.5 SPMT 07
156500.0800 24 25 150 76 72 + 0.75 25.5 SPMT 07
156500.0900 25 25 154 79 75 + 0.5 26 SPMT 07
1 56520 Indexable insert FUTURO

P M K S

Types
• UNI: PVD, micro-grain, improved performance, longer service life. Greatly reduced cutting forces
due to the highly polished cutting edge with highly positive chip breaker (11°).
Appropriate tool holders:
156500 Indexable insert drill FUTURO HPC
Order ID Code Type iC l r s
mm mm mm mm
156520.0100 SPMT 06 03 04 UNI 6.35 6.35 0.4 3.18
156520.0200 SPMT 07 03 08 UNI 7.94 7.94 0.8 3.18

714 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
