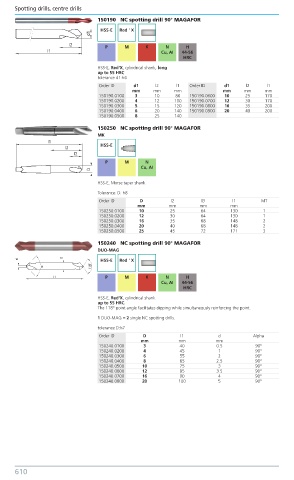

Spotting drills, centre drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
150190 NC spotting drill 90° MAGAFOR

HSS-E Red ' X

P M K N H
Cu, AI 44-56
HRC
HSS-E, Red‘X, cylindrical shank, long
up to 55 HRC
tolerance d1:h6
Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm
150190.0100 3 10 80 150190.0600 10 25 170
150190.0200 4 12 100 150190.0700 12 30 170
150190.0300 5 15 120 150190.0800 16 35 200
150190.0400 6 20 140 150190.0900 20 40 200
150190.0500 8 25 140
150250 NC spotting drill 90° MAGAFOR
MK
HSS-E

P M N
Cu, AI

HSS-E, Morse taper shank
Tolerance: D: h8
Order ID D l2 l3 l1 MT
mm mm mm mm
150250.0100 10 25 64 130 1
150250.0200 12 30 64 130 1
150250.0300 16 35 68 148 2
150250.0400 20 40 68 148 2
150250.0500 25 45 72 171 3
150240 NC spotting drill 90° MAGAFOR
DUO-MAG
HSS-E Red ' X

P M K N H
Cu, AI 44-56
HRC
HSS-E, Red‘X, cylindrical shank.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
tolerance D:h7
Order ID D l1 d Alpha
mm mm mm
150240.0100 3 40 0.5 90°
150240.0200 4 45 1 90°
150240.0300 6 55 2 90°
150240.0400 8 65 2.5 90°
150240.0500 10 75 3 90°
150240.0600 12 85 3.5 90°
150240.0700 16 90 4 90°
150240.0800 20 100 5 90°
