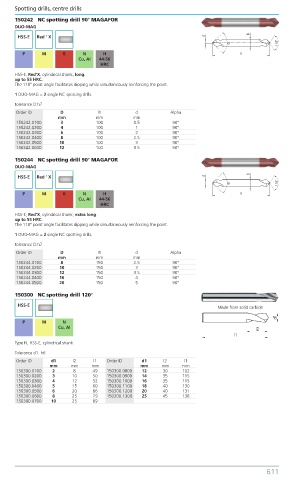

Page 620 - Benma | Blue book 5.0

Spotting drills, centre drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
150242 NC spotting drill 90° MAGAFOR
DUO-MAG
HSS-E Red ' X

P M K N H
Cu, AI 44-56
HRC
HSS-E, Red‘X, cylindrical shank, long.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
tolerance D:h7
Order ID D l1 d Alpha
mm mm mm
150242.0100 3 100 0.5 90°
150242.0200 4 100 1 90°
150242.0300 6 100 2 90°
150242.0400 8 100 2.5 90°
150242.0500 10 100 3 90°
150242.0600 12 100 3.5 90°

150244 NC spotting drill 90° MAGAFOR
DUO-MAG
HSS-E Red ' X

P M K N H
Cu, AI 44-56
HRC
HSS-E, Red‘X, cylindrical shank, extra long.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
tolerance D:h7
Order ID D l1 d Alpha
mm mm mm
150244.0100 8 150 2.5 90°
150244.0200 10 150 3 90°
150244.0300 12 150 3.5 90°
150244.0400 16 150 4 90°
150244.0500 20 150 5 90°

150300 NC spotting drill 120°
HSS-E Made from solid carbide

P M N
Cu, AI

Type N, HSS-E, cylindrical shank.
Tolerance d1: h6
Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm
150300.0100 2 8 49 150300.0800 12 30 102
150300.0200 3 10 50 150300.0900 14 35 115
150300.0300 4 12 52 150300.1000 16 35 115
150300.0400 5 15 60 150300.1100 18 40 130
150300.0500 6 20 66 150300.1200 20 40 131
150300.0600 8 25 79 150300.1300 25 45 138
150300.0700 10 25 89

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 611
