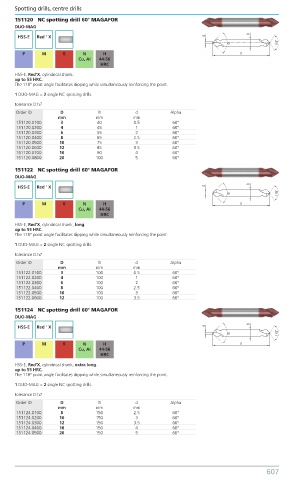

Page 616 - Benma | Blue book 5.0

Spotting drills, centre drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
151120 NC spotting drill 60° MAGAFOR
DUO-MAG
HSS-E Red ' X

P M K N H
Cu, AI 44-56
HRC
HSS-E, Red‘X, cylindrical shank.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
tolerance D:h7
Order ID D l1 d Alpha
mm mm mm
151120.0100 3 40 0.5 60°
151120.0200 4 45 1 60°
151120.0300 6 55 2 60°
151120.0400 8 65 2.5 60°
151120.0500 10 75 3 60°
151120.0600 12 85 3.5 60°
151120.0700 16 90 4 60°
151120.0800 20 100 5 60°

151122 NC spotting drill 60° MAGAFOR
DUO-MAG
HSS-E Red ' X

P M K N H
Cu, AI 44-56
HRC
HSS-E, Red‘X, cylindrical shank, long.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
tolerance D:h7
Order ID D l1 d Alpha
mm mm mm
151122.0100 3 100 0.5 60°
151122.0200 4 100 1 60°
151122.0300 6 100 2 60°
151122.0400 8 100 2.5 60°
151122.0500 10 100 3 60°
151122.0600 12 100 3.5 60°

151124 NC spotting drill 60° MAGAFOR
DUO-MAG
HSS-E Red ' X

P M K N H
Cu, AI 44-56
HRC
HSS-E, Red‘X, cylindrical shank, extra long.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
tolerance D:h7
Order ID D l1 d Alpha
mm mm mm
151124.0100 8 150 2.5 60°
151124.0200 10 150 3 60°
151124.0300 12 150 3.5 60°
151124.0400 16 150 4 60°
151124.0500 20 150 5 60°
