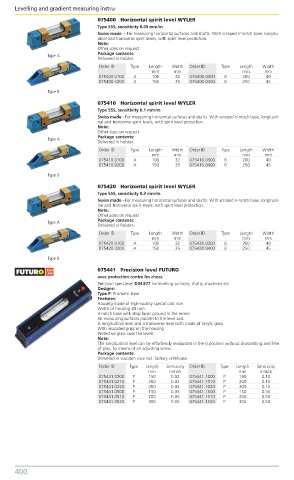

Page 406 - Benma | Blue book 5.0

Levelling and gradient measuring instru- Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
075400 Horizontal spirit level WYLER
Type 55S, sensitivity 0.05 mm/m
Swiss made - For measuring horizontal surfaces and shafts. With scraped V-notch base, longitu-
dinal and transverse spirit levels, with spirit level protection.
Note:
Other sizes on request
Type A Package contents:
Delivered in holster.
Order ID Type Length Width Order ID Type Length Width
mm mm mm mm
075400.0100 A 100 32 075400.0300 B 200 40
075400.0200 A 150 35 075400.0400 B 250 45
Type B
075410 Horizontal spirit level WYLER
Type 55S, sensitivity 0.1 mm/m
Swiss made - For measuring horizontal surfaces and shafts. With scraped V-notch base, longitudi-
nal and transverse spirit levels, with spirit level protection.
Note:
Other sizes on request
Type A Package contents:
Delivered in holster.
Order ID Type Length Width Order ID Type Length Width
mm mm mm mm
075410.0100 A 100 32 075410.0300 B 200 40
075410.0200 A 150 35 075410.0400 B 250 45
Type B
075420 Horizontal spirit level WYLER
Type 55S, sensitivity 0.3 mm/m
Swiss made - For measuring horizontal surfaces and shafts. With scraped V-notch base, longitudi-
nal and transverse spirit levels, with spirit level protection.
Note:
Other sizes on request
Package contents:
Type A
Delivered in holster.
Order ID Type Length Width Order ID Type Length Width
mm mm mm mm
075420.0100 A 100 32 075420.0300 B 200 40
075420.0200 A 150 35 075420.0400 B 250 45
Type B

075441 Precision level FUTURO
avec protection contre les chocs.
Precision spirit level DIN 877 for levelling surfaces, shafts, machines etc.
Designs:
Type P: Prismatic base
Features:
Housing made of high-quality special cast iron
Width of housing 40 mm
V-notch base with stop faces ground in the recess
All measuring surfaces parallel to the level axis
A longitudinal level and a transverse level both made of acrylic glass
With insulated grips on the housing
Protective glass over the levels
Note:
The longitudinal level can be effortlessly readjusted in the 0 position without dismantling and free
of play, by means of an adjusting screw.
Package contents:
Delivered in wooden case incl. factory certificate.
Order ID Type Length Sensitivity Order ID Type Length Sensitivity
mm mm/m mm mm/m
075441.0200 P 150 0.02 075441.1000 P 150 0.10
075441.0210 P 200 0.02 075441.1010 P 200 0.10
075441.0220 P 300 0.02 075441.1020 P 300 0.10
075441.0500 P 150 0.05 075441.1500 P 150 0.50
075441.0510 P 200 0.05 075441.1510 P 200 0.50
075441.0520 P 300 0.05 075441.1520 P 300 0.50

400 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
