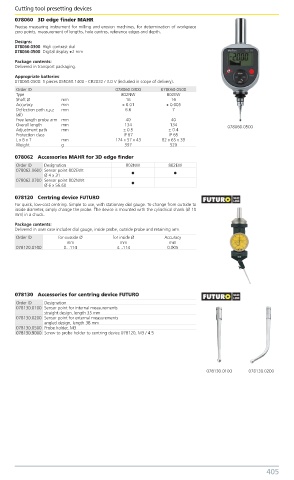

Cutting tool presetting devices Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
078060 3D edge finder MAHR
Precise measuring instrument for milling and erosion machines, for determination of workpiece
zero points, measurement of lengths, hole centres, reference edges and depth.
Designs:
078060.0300: High contrast dial
078060.0500: Digital display ±2 mm
Package contents:
Delivered in transport packaging.
Appropriate batteries:
078060.0500: 1 pieces 055050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Order ID 078060.0300 078060.0500
Type 802NW 802EW
Shaft Ø mm 16 16
Accuracy mm ± 0.01 ± 0.005
Deflection path x,y,z mm 6.6 7
(all)
Free length probe arm mm 40 40
Overall length mm 134 134 078060.0500
Adjustment path mm ± 0.5 ± 0.4
Protection class IP 67 IP 65
L x B x T mm 174 x 57 x 43 82 x 65 x 39
Weight g 397 520
078062 Accessories MAHR for 3D edge finder
Order ID Designation 802NW 802EW
078062.0600 Sensor point 802EWt
Ø 4 x 31
078062.0700 Sensor point 802NWt
Ø 6 x 56.60
078120 Centring device FUTURO
For quick, low-cost centring. Simple to use, with stationary dial gauge. To change from outside to
inside diameter, simply change the probe. The device is mounted with the cylindrical shank (Ø 10
mm) in a chuck.
Package contents:
Delivered in own case includes dial gauge, inside probe, outside probe and retaining arm.
Order ID for outside Ø for inside Ø Accuracy
mm mm mm
078120.0100 0...114 4...114 0.005

078130 Accessories for centring device FUTURO
Order ID Designation
078130.0100 Sensor point for internal measurements
straight design, length 35 mm
078130.0200 Sensor point for external measurements
angled design, length 38 mm
078130.0500 Probe holder, M3
078130.9000 Screw to probe holder to centring device 078120, M3 / 4.5

078130.0100 078130.0200
