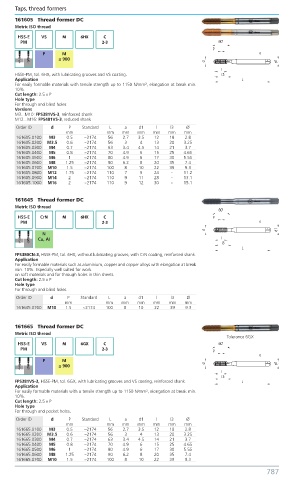

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
161605 Thread former DC
Metric ISO thread
HSS-E VS M 6HX C
PM 2-3
P M
≤ 900

HSSE-PM, tol. 6HX, with lubricating grooves and VS coating.
Application
For easily formable materials with tensile strength up to 1150 N/mm², elongation at break min.
10%.
Cut length: 2.5 x P
Hole type
For through and blind holes.
Versions
M3...M10: FPS381VS-3, reinforced shank
M12...M16: FPS481VS-3, reduced shank
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
161605.0100 M3 0.5 ~2174 56 2.7 3.5 12 18 2.8
161605.0200 M3.5 0.6 ~2174 56 3 4 13 20 3.25
161605.0300 M4 0.7 ~2174 63 3.4 4.5 14 21 3.7
161605.0400 M5 0.8 ~2174 70 4.9 6 15 25 4.65
161605.0500 M6 1 ~2174 80 4.9 6 17 30 5.55
161605.0600 M8 1.25 ~2174 90 6.2 8 20 35 7.4
161605.0700 M10 1.5 ~2174 100 8 10 22 39 9.3
161605.0800 M12 1.75 ~2174 110 7 9 24 - 11.2
161605.0900 M14 2 ~2174 110 9 11 28 - 13.1
161605.1000 M16 2 ~2174 110 9 12 30 - 15.1

161645 Thread former DC
Metric ISO thread
HSS-E CrN M 6HX C
PM 2-3
N
Cu, AI

FPS380CN-3, HSSE-PM, tol. 6HX, without lubricating grooves, with CrN coating, reinforced shank.
Application
For easily formable materials such as aluminium, copper and copper alloys with elongation at break
min. 10%. Especially well suited for work
on soft materials and for through holes in thin sheets.
Cut length: 2.5 x P
Hole type
For through and blind holes.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
161645.0700 M10 1.5 ~2174 100 8 10 22 39 9.3

161665 Thread former DC
Metric ISO thread
Tolerance 6GX
HSS-E VS M 6GX C
PM 2-3
P M
≤ 900

FPS381VS-3, HSSE-PM, tol. 6GX, with lubricating grooves and VS coating, reinforced shank.
Application
For easily formable materials with a tensile strength up to 1150 N/mm², elongation at break min.
10%.
Cut length: 2.5 x P
Hole type
For through and pocket holes.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
161665.0100 M3 0.5 ~2174 56 2.7 3.5 12 18 2.8
161665.0200 M3.5 0.6 ~2174 56 3 4 13 20 3.25
161665.0300 M4 0.7 ~2174 63 3.4 4.5 14 21 3.7
161665.0400 M5 0.8 ~2174 70 4.9 6 15 25 4.65
161665.0500 M6 1 ~2174 80 4.9 6 17 30 5.55
161665.0600 M8 1.25 ~2174 90 6.2 8 20 35 7.4
161665.0700 M10 1.5 ~2174 100 8 10 22 39 9.3
