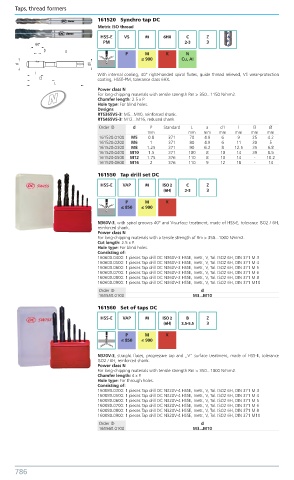

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
161520 Synchro tap DC
Metric ISO thread
HSS-E VS M 6HX C Z
PM 2-3 3
P M K N
≤ 900 Cu, AI

With internal cooling, 40° right-handed spiral flutes, guide thread relieved, VS wear-protection
coating, HSSE-PM, tolerance class 6HX.
Power class N
N For long-chipping materials with tensile strength Rm > 350...1150 N/mm2.
Chamfer length: 2.5 x P.
Hole type: For blind holes.
Designs
RTS365VS-3: M5...M10, reinforced shank.
RTS465VS-3: M12...M16, reduced shank.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
161520.0100 M5 0.8 371 70 4.9 6 9 25 4.2
161520.0200 M6 1 371 80 4.9 6 11 30 5
161520.0300 M8 1.25 371 90 6.2 8 12.5 35 6.8
161520.0400 M10 1.5 371 100 8 10 14 39 8.5
161520.0500 M12 1.75 376 110 8 10 14 - 10.2
161520.0600 M16 2 376 110 9 12 18 - 14
161550 Tap drill set DC

HSS-E VAP M ISO 2 C Z
(6H) 2-3 3
P M K
≤ 850 ≤ 900

N360V-3, with spiral grooves 40° and V-surface treatment, made of HSS-E, tolerance ISO2 / 6H,
reinforced shank.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 2.5 x P.
Hole type: For blind holes.
Consisting of:
160600.0400: 1 pieces Tap drill DC N360V-3 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 3
160600.0500: 1 pieces Tap drill DC N360V-3 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 4
160600.0600: 1 pieces Tap drill DC N360V-3 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 5
160600.0700: 1 pieces Tap drill DC N360V-3 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 6
160600.0800: 1 pieces Tap drill DC N360V-3 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 8
160600.0900: 1 pieces Tap drill DC N360V-3 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M10
Order ID d
161550.0100 M3...M10
161560 Set of taps DC
HSS-E VAP M ISO 2 B Z
(6H) 3.5-5.5 3

P M K
≤ 850 ≤ 900

N320V-3, straight flutes, progressive tap and „V“ surface treatment, made of HSS-E, tolerance
ISO2 / 6H, reinforced shank.
Power class N
For long-chipping materials with tensile strength Rm > 350...1000 N/mm2.
Chamfer length: 4 x P.
Hole type: For through holes.
Consisting of:
160080.0300: 1 pieces Tap drill DC N320V-4 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 3
160080.0500: 1 pieces Tap drill DC N320V-4 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 4
160080.0600: 1 pieces Tap drill DC N320V-4 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 5
160080.0700: 1 pieces Tap drill DC N320V-4 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 6
160080.0800: 1 pieces Tap drill DC N320V-4 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M 8
160080.0900: 1 pieces Tap drill DC N320V-4 HSSE, metr., V, Tol. ISO2 6H, DIN 371 M10
Order ID d
161560.0100 M3...M10

786 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
