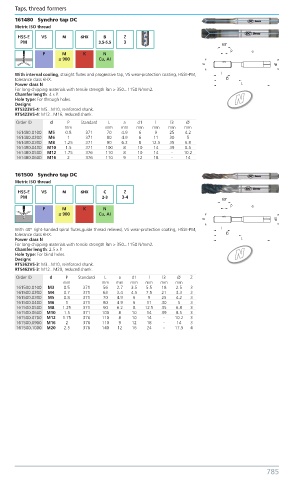

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
161480 Synchro tap DC
Metric ISO thread
HSS-E VS M 6HX B Z
PM 3.5-5.5 3
P M K N
≤ 900 Cu, AI

With internal cooling, straight flutes and progressive tap, VS wear-protection coating, HSSE-PM,
tolerance class 6HX.
Power class N
For long-chipping materials with tensile strength Rm > 350...1150 N/mm2.
Chamfer length: 4 x P.
Hole type: For through holes. N
Designs
RTS323VS-4: M5...M10, reinforced shank.
RTS423VS-4: M12...M16, reduced shank.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
161480.0100 M5 0.8 371 70 4.9 6 9 25 4.2
161480.0200 M6 1 371 80 4.9 6 11 30 5
161480.0300 M8 1.25 371 90 6.2 8 12.5 35 6.8
161480.0400 M10 1.5 371 100 8 10 14 39 8.5
161480.0500 M12 1.75 376 110 8 10 14 - 10.2
161480.0600 M16 2 376 110 9 12 18 - 14

161500 Synchro tap DC
Metric ISO thread
HSS-E VS M 6HX C Z
PM 2-3 3-4
P M K N
≤ 900 Cu, AI

With 40° right-handed spiral flutes,guide thread relieved, VS wear-protection coating, HSSE-PM,
tolerance class 6HX.
Power class N
For long-chipping materials with tensile strength Rm > 350...1150 N/mm2.
Chamfer length: 2.5 x P.
Hole type: For blind holes. N
Designs
RTS362VS-3: M3...M10, reinforced shank.
RTS462VS-3: M12...M20, reduced shank.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
161500.0100 M3 0.5 371 56 2.7 3.5 5.5 18 2.5 3
161500.0200 M4 0.7 371 63 3.4 4.5 7.5 21 3.3 3
161500.0300 M5 0.8 371 70 4.9 6 9 25 4.2 3
161500.0400 M6 1 371 80 4.9 6 11 30 5 3
161500.0500 M8 1.25 371 90 6.2 8 12.5 35 6.8 3
161500.0600 M10 1.5 371 100 8 10 14 39 8.5 3
161500.0700 M12 1.75 376 110 8 10 14 - 10.2 3
161500.0900 M16 2 376 110 9 12 18 - 14 3
161500.1000 M20 2.5 376 140 12 16 24 - 17.5 4
