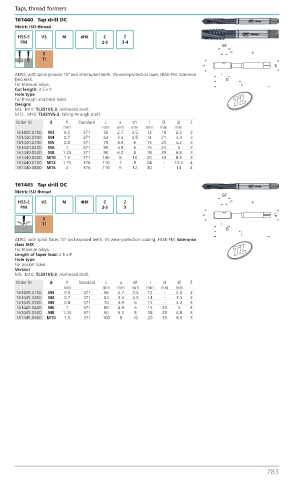

161440 Tap drill DC
Metric ISO-thread
HSS-E VS M 6HX C Z
PM 2-3 3-4
S
Ti

AERO, with spiral grooves 15° and interrupted teeth, VS-wear-protection layer, HSSE-PM, tolerance
field 6HX.
For titanium alloys.
Cut length: 2.5 x P.
Hole type
For through and blind holes. TL
Designs
M3...M10: TL351VS-3, reinforced shaft.
M12...M16: TL451VS-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
161440.0100 M3 0.5 371 56 2.7 3.5 12 18 2.5 3
161440.0200 M4 0.7 371 63 3.4 4.5 14 21 3.3 3
161440.0300 M5 0.8 371 70 4.9 6 15 25 4.2 3
161440.0400 M6 1 371 80 4.9 6 15 23 5 3
161440.0500 M8 1.25 371 90 6.2 8 18 29 6.8 3
161440.0600 M10 1.5 371 100 8 10 20 33 8.5 3
161440.0700 M12 1.75 376 110 7 9 24 - 10.2 4
161440.0800 M16 2 376 110 9 12 30 - 14 4

161445 Tap drill DC
Metric ISO thread
HSS-E VS M 4HX C Z
PM 2-3 3
S
Ti

AERO, with spiral flutes 15° and exposed teeth, VS wear-protection coating, HSSE-PM, tolerance
class 4HX.
For titanium alloys. TL
Length of taper lead: 2.5 x P.
Hole type
For pocket holes.
Version
M3...M10: TL351VS-3, reinforced shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
161445.0100 M3 0.5 371 56 2.7 3.5 12 - 2.5 3
161445.0200 M4 0.7 371 63 3.4 4.5 14 - 3.3 3
161445.0300 M5 0.8 371 70 4.9 6 15 - 4.2 3
161445.0400 M6 1 371 80 4.9 6 15 23 5 3
161445.0500 M8 1.25 371 90 6.2 8 18 29 6.8 3
161445.0600 M10 1.5 371 100 8 10 20 33 8.5 3
