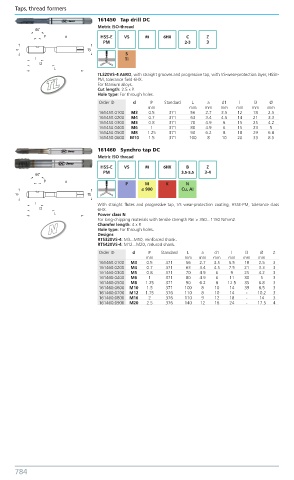

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
161450 Tap drill DC
Metric ISO-thread
HSS-E VS M 6HX C Z
PM 2-3 3
S
Ti

TL320VS-4 AERO, with straight grooves and progressive tap, with VS-wear-protection layer, HSSE-
TL PM, tolerance field 6HX.
For titanium alloys.
Cut length: 2.5 x P.
Hole type: For through holes.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
161450.0100 M3 0.5 371 56 2.7 3.5 12 18 2.5
161450.0200 M4 0.7 371 63 3.4 4.5 14 21 3.3
161450.0300 M5 0.8 371 70 4.9 6 15 25 4.2
161450.0400 M6 1 371 80 4.9 6 15 23 5
161450.0500 M8 1.25 371 90 6.2 8 18 29 6.8
161450.0600 M10 1.5 371 100 8 10 20 33 8.5

161460 Synchro tap DC
Metric ISO thread
HSS-E VS M 6HX B Z
PM 3.5-5.5 3-4
P M K N
≤ 900 Cu, AI
With straight flutes and progressive tap, VS wear-protection coating, HSSE-PM, tolerance class
6HX.
Power class N
For long-chipping materials with tensile strength Rm > 350...1150 N/mm2.
N Chamfer length: 4 x P.
Hole type: For through holes.
Designs
RTS320VS-4: M3...M10, reinforced shank.
RTS420VS-4: M12...M20, reduced shank.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
161460.0100 M3 0.5 371 56 2.7 3.5 5.5 18 2.5 3
161460.0200 M4 0.7 371 63 3.4 4.5 7.5 21 3.3 3
161460.0300 M5 0.8 371 70 4.9 6 9 25 4.2 3
161460.0400 M6 1 371 80 4.9 6 11 30 5 3
161460.0500 M8 1.25 371 90 6.2 8 12.5 35 6.8 3
161460.0600 M10 1.5 371 100 8 10 14 39 8.5 3
161460.0700 M12 1.75 376 110 8 10 14 - 10.2 3
161460.0800 M16 2 376 110 9 12 18 - 14 3
161460.0900 M20 2.5 376 140 12 16 24 - 17.5 4
