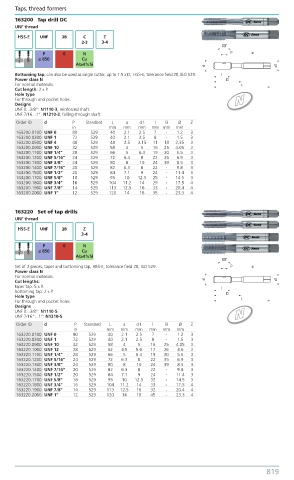

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
163200 Tap drill DC
UNF thread
HSS-E UNF 2B C Z
2-3 3-4
P K N
≤ 850 Cu
AI≥4%Si
Bottoming tap, can also be used as single cutter, up to 1.5 x D, HSS-E, tolerance field 2B, ISO 529.
Power class N
For normal materials.
Cut length: 2 x P.
Hole type
For through and pocket holes. N
Designs
UNF 0...3/8“: N1110-3, reinforced shaft.
UNF 7/16...1“: N1210-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
in mm mm mm mm mm mm
163200.0100 UNF 0 80 529 40 2.1 2.5 7 - 1.2 3
163200.0200 UNF 1 72 529 40 2.1 2.5 8 - 1.5 3
163200.0500 UNF 4 48 529 48 2.5 3.15 11 18 2.35 3
163200.0900 UNF 10 32 529 58 4 5 16 25 4.05 3
163200.1100 UNF 1/4“ 28 529 66 5 6.3 19 30 5.5 3
163200.1200 UNF 5/16“ 24 529 72 6.3 8 22 35 6.9 3
163200.1300 UNF 3/8“ 24 529 80 8 10 24 39 8.5 3
163200.1400 UNF 7/16“ 20 529 82 6.3 8 22 - 9.8 3
163200.1500 UNF 1/2“ 20 529 84 7.1 9 24 - 11.4 3
163200.1700 UNF 5/8“ 18 529 95 10 12.5 25 - 14.5 3
163200.1800 UNF 3/4“ 16 529 104 11.2 14 29 - 17.5 4
163200.1900 UNF 7/8“ 14 529 113 12.5 16 33 - 20.4 4
163200.2000 UNF 1“ 12 529 120 14 18 35 - 23.3 4

163220 Set of tap drills
UNF thread
HSS-E UNF 2B Z
3-4

P K N
≤ 850 Cu
AI≥4%Si
Set of 2 pieces, taper and bottoming tap, HSS-E, tolerance field 2B, ISO 529.
Power class N
For normal materials.
Cut lengths:
taper tap: 5 x P.
bottoming tap: 2 x P.
Hole type
For through and pocket holes.
Designs
UNF 0...3/8“: N1110-S. N
UNF 7/16“...1“: N1210-S.
Order ID d P Standard L a d1 l l3 Ø Z
in mm mm mm mm mm mm
163220.0100 UNF 0 80 529 40 2.1 2.5 7 - 1.2 3
163220.0200 UNF 1 72 529 40 2.1 2.5 8 - 1.5 3
163220.0900 UNF 10 32 529 58 4 5 16 25 4.05 3
163220.1000 UNF 12 28 529 62 4.5 5.6 17 26 4.6 3
163220.1100 UNF 1/4“ 28 529 66 5 6.3 19 30 5.5 3
163220.1200 UNF 5/16“ 24 529 72 6.3 8 22 35 6.9 3
163220.1300 UNF 3/8“ 24 529 80 8 10 24 39 8.5 3
163220.1400 UNF 7/16“ 20 529 82 6.3 8 22 - 9.8 3
163220.1500 UNF 1/2“ 20 529 84 7.1 9 24 - 11.4 3
163220.1700 UNF 5/8“ 18 529 95 10 12.5 32 - 14.5 3
163220.1800 UNF 3/4“ 16 529 104 11.2 14 33 - 17.5 4
163220.1900 UNF 7/8“ 14 529 113 12.5 16 32 - 20.4 4
163220.2000 UNF 1“ 12 529 120 14 18 45 - 23.3 4
