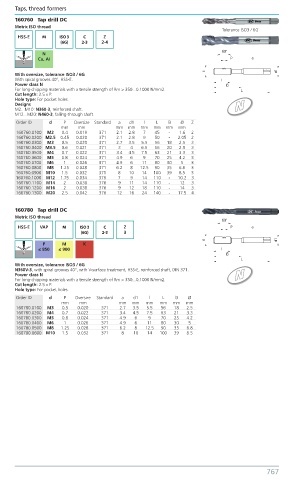

Page 776 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 60760 Tap drill DC
Metric ISO thread
Tolerance ISO3 / 6G
HSS-E M ISO 3 C Z
(6G) 2-3 2-4
N
Cu, AI

With oversize, tolerance ISO3 / 6G
With spiral grooves 40°, HSS-E.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...0.1000 N/mm2.
Cut length: 2.5 x P.
Hole type: For pocket holes.
Designs N
M2...M10: N360-3, reinforced shaft.
M12...M20: N460-3, falling-through shaft.
Order ID d P Oversize Standard a d1 l L l3 Ø Z
mm mm mm mm mm mm mm mm
160760.0100 M2 0.4 0.019 371 2.1 2.8 7 45 - 1.6 2
160760.0200 M2.5 0.45 0.020 371 2.1 2.8 9 50 - 2.05 2
160760.0300 M3 0.5 0.020 371 2.7 3.5 5.5 56 18 2.5 3
160760.0400 M3.5 0.6 0.021 371 3 4 6.5 56 20 2.9 3
160760.0500 M4 0.7 0.022 371 3.4 4.5 7.5 63 21 3.3 3
160760.0600 M5 0.8 0.024 371 4.9 6 9 70 25 4.2 3
160760.0700 M6 1 0.026 371 4.9 6 11 80 30 5 3
160760.0800 M8 1.25 0.028 371 6.2 8 12.5 90 35 6.8 3
160760.0900 M10 1.5 0.032 371 8 10 14 100 39 8.5 3
160760.1000 M12 1.75 0.034 376 7 9 14 110 - 10.2 3
160760.1100 M14 2 0.038 376 9 11 14 110 - 12 3
160760.1200 M16 2 0.038 376 9 12 18 110 - 14 3
160760.1300 M20 2.5 0.042 376 12 16 24 140 - 17.5 4

1 60780 Tap drill DC
Metric ISO thread
HSS-E VAP M ISO 3 C Z
(6G) 2-3 3
P M K
≤ 850 ≤ 900

With oversize, tolerance ISO3 / 6G
N360V-3, with spiral grooves 40°, with V-surface treatment, HSS-E, reinforced shaft, DIN 371.
Power class N N
For long-chipping materials with a tensile strength of Rm > 350...0.1000 N/mm2.
Cut length: 2.5 x P.
Hole type: For pocket holes.
Order ID d P Oversize Standard a d1 l L l3 Ø
mm mm mm mm mm mm mm mm
160780.0100 M3 0.5 0.020 371 2.7 3.5 5.5 56 18 2.5
160780.0200 M4 0.7 0.022 371 3.4 4.5 7.5 63 21 3.3
160780.0300 M5 0.8 0.024 371 4.9 6 9 70 25 4.2
160780.0400 M6 1 0.026 371 4.9 6 11 80 30 5
160780.0500 M8 1.25 0.028 371 6.2 8 12.5 90 35 6.8
160780.0600 M10 1.5 0.032 371 8 10 14 100 39 8.5

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 767
