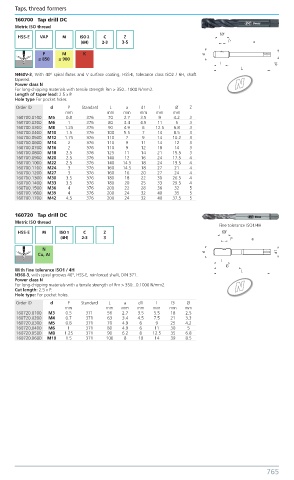

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 60700 Tap drill DC
Metric ISO thread
HSS-E VAP M ISO 2 C Z
(6H) 2-3 3-5
P M K
≤ 850 ≤ 900

N460V-3, With 40° spiral flutes and V surface coating, HSS-E, tolerance class ISO2 / 6H, shaft
tapered.
Power class N N
For long-chipping materials with tensile strength Rm > 350...1000 N/mm2.
Length of taper lead: 2.5 x P.
Hole type For pocket holes.
Order ID d P Standard L a d1 l Ø Z
mm mm mm mm mm mm
160700.0100 M5 0.8 376 70 2.7 3.5 9 4.2 3
160700.0200 M6 1 376 80 3.4 4.5 11 5 3
160700.0300 M8 1.25 376 90 4.9 6 12.5 6.8 3
160700.0400 M10 1.5 376 100 5.5 7 14 8.5 3
160700.0500 M12 1.75 376 110 7 9 14 10.2 3
160700.0600 M14 2 376 110 9 11 14 12 3
160700.0700 M16 2 376 110 9 12 18 14 3
160700.0800 M18 2.5 376 125 11 14 21 15.5 3
160700.0900 M20 2.5 376 140 12 16 24 17.5 4
160700.1000 M22 2.5 376 140 14.5 18 24 19.5 4
160700.1100 M24 3 376 160 14.5 18 27 21 4
160700.1200 M27 3 376 160 16 20 27 24 4
160700.1300 M30 3.5 376 180 18 22 30 26.5 4
160700.1400 M33 3.5 376 180 20 25 33 29.5 4
160700.1500 M36 4 376 200 22 28 36 32 5
160700.1600 M39 4 376 200 24 32 40 35 5
160700.1700 M42 4.5 376 200 24 32 40 37.5 5

1 60720 Tap drill DC
Metric ISO thread
Fine tolerance ISO1/4H
HSS-E M ISO 1 C Z
(4H) 2-3 3

N
Cu, AI

With fine tolerance ISO1 / 4H
N360-3, with spiral grooves 40°, HSS-E, reinforced shaft, DIN 371.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...0.1000 N/mm2. N
Cut length: 2.5 x P.
Hole type: For pocket holes.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
160720.0100 M3 0.5 371 56 2.7 3.5 5.5 18 2.5
160720.0200 M4 0.7 371 63 3.4 4.5 7.5 21 3.3
160720.0300 M5 0.8 371 70 4.9 6 9 25 4.2
160720.0400 M6 1 371 80 4.9 6 11 30 5
160720.0500 M8 1.25 371 90 6.2 8 12.5 35 6.8
160720.0600 M10 1.5 371 100 8 10 14 39 8.5
