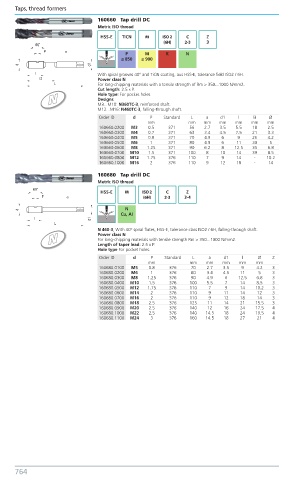

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 60660 Tap drill DC
Metric ISO thread
HSS-E TiCN M ISO 2 C Z
(6H) 2-3 3
P M K N
≤ 850 ≤ 900

With spiral grooves 40° and TiCN coating, aus HSS-E, tolerance field ISO2 / 6H.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 2.5 x P.
N Hole type: For pocket holes.
Designs
M3...M10: N360TC-3, reinforced shaft.
M12...M16: N460TC-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
160660.0200 M3 0.5 371 56 2.7 3.5 5.5 18 2.5
160660.0300 M4 0.7 371 63 3.4 4.5 7.5 21 3.3
160660.0400 M5 0.8 371 70 4.9 6 9 25 4.2
160660.0500 M6 1 371 80 4.9 6 11 30 5
160660.0600 M8 1.25 371 90 6.2 8 12.5 35 6.8
160660.0700 M10 1.5 371 100 8 10 14 39 8.5
160660.0800 M12 1.75 376 110 7 9 14 - 10.2
160660.1000 M16 2 376 110 9 12 18 - 14
1 60680 Tap drill DC
Metric ISO thread
HSS-E M ISO 2 C Z
(6H) 2-3 3-4
N
Cu, AI

N 460-3, With 40° spiral flutes, HSS-E, tolerance class ISO2 / 6H, falling-through shaft.
N Power class N
For long-chipping materials with tensile strength Rm > 350...1000 N/mm2.
Length of taper lead: 2.5 x P.
Hole type For pocket holes.
Order ID d P Standard L a d1 l Ø Z
mm mm mm mm mm mm
160680.0100 M5 0.8 376 70 2.7 3.5 9 4.2 3
160680.0200 M6 1 376 80 3.4 4.5 11 5 3
160680.0300 M8 1.25 376 90 4.9 6 12.5 6.8 3
160680.0400 M10 1.5 376 100 5.5 7 14 8.5 3
160680.0500 M12 1.75 376 110 7 9 14 10.2 3
160680.0600 M14 2 376 110 9 11 14 12 3
160680.0700 M16 2 376 110 9 12 18 14 3
160680.0800 M18 2.5 376 125 11 14 21 15.5 3
160680.0900 M20 2.5 376 140 12 16 24 17.5 4
160680.1000 M22 2.5 376 140 14.5 18 24 19.5 4
160680.1100 M24 3 376 160 14.5 18 27 21 4
