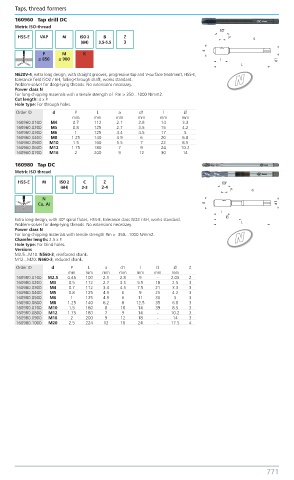

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 60960 Tap drill DC
Metric ISO-thread
HSS-E VAP M ISO 2 B Z
(6H) 3.5-5.5 3
P M K
≤ 850 ≤ 900

N620V-4, extra long design, with straight grooves, progressive tap and V-surface treatment, HSS-E,
tolerance field ISO2 / 6H, falling-through shaft, works standard. N
Problem-solver for deep-lying threads. No extensions necessary.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 4 x P.
Hole type: For through holes.
Order ID d P L a d1 l Ø
mm mm mm mm mm mm
160960.0100 M4 0.7 112 2.1 2.8 14 3.3
160960.0200 M5 0.8 125 2.7 3.5 15 4.2
160960.0300 M6 1 125 3.4 4.5 17 5
160960.0400 M8 1.25 140 4.9 6 20 6.8
160960.0500 M10 1.5 160 5.5 7 22 8.5
160960.0600 M12 1.75 180 7 9 24 10.2
160960.0700 M16 2 200 9 12 30 14
1 60980 Tap DC
Metric ISO thread
HSS-E M ISO 2 C Z
(6H) 2-3 2-4
N
Cu, AI

Extra long design, with 40° spiral flutes, HSS-E, tolerance class ISO2 / 6H, works standard.
Problem-solver for deep-lying threads. No extensions necessary.
Power class N
For long-chipping materials with tensile strength Rm > 350...1000 N/mm2. N
Chamfer length: 2.5 x P.
Hole type: For blind holes.
Versions
M2.5...M10: N560-3, reinforced shank.
M12...M20: N660-3, reduced shank.
Order ID d P L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
160980.0100 M2.5 0.45 100 2.1 2.8 9 - 2.05 2
160980.0200 M3 0.5 112 2.7 3.5 5.5 18 2.5 3
160980.0300 M4 0.7 112 3.4 4.5 7.5 21 3.3 3
160980.0400 M5 0.8 125 4.9 6 9 25 4.2 3
160980.0500 M6 1 125 4.9 6 11 30 5 3
160980.0600 M8 1.25 140 6.2 8 12.5 35 6.8 3
160980.0700 M10 1.5 160 8 10 14 39 8.5 3
160980.0800 M12 1.75 180 7 9 14 - 10.2 3
160980.0900 M16 2 200 9 12 18 - 14 3
160980.1000 M20 2.5 224 12 16 24 - 17.5 4
