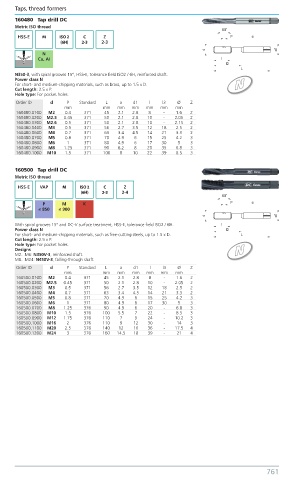

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 60480 Tap drill DC
Metric ISO thread
HSS-E M ISO 2 C Z
(6H) 2-3 2-3
N
Cu, AI

N350-3, with spiral grooves 15°, HSS-E, tolerance field ISO2 / 6H, reinforced shaft.
Power class N
For short- and medium-chipping materials, such as brass, up to 1.5 x D. N
Cut length: 2.5 x P.
Hole type: For pocket holes.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
160480.0100 M2 0.4 371 45 2.1 2.8 8 - 1.6 2
160480.0200 M2.5 0.45 371 50 2.1 2.8 10 - 2.05 2
160480.0300 M2.6 0.5 371 50 2.1 2.8 10 - 2.15 2
160480.0400 M3 0.5 371 56 2.7 3.5 12 18 2.5 2
160480.0600 M4 0.7 371 63 3.4 4.5 14 21 3.3 2
160480.0700 M5 0.8 371 70 4.9 6 15 25 4.2 3
160480.0800 M6 1 371 80 4.9 6 17 30 5 3
160480.0900 M8 1.25 371 90 6.2 8 20 35 6.8 3
160480.1000 M10 1.5 371 100 8 10 22 39 8.5 3

1 60500 Tap drill DC
Metric ISO thread
HSS-E VAP M ISO 2 C Z
(6H) 2-3 2-4
P M K
≤ 850 ≤ 900

With spiral grooves 15° and DC-V surface treatment, HSS-E, tolerance field ISO2 / 6H.
Power class N
For short- and medium-chipping materials, such as free-cutting steels, up to 1.5 x D.
Cut length: 2.5 x P.
Hole type: For pocket holes.
Designs N
M2...M6: N350V-3, reinforced shaft.
M8...M24: N450V-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
160500.0100 M2 0.4 371 45 2.1 2.8 8 - 1.6 2
160500.0200 M2.5 0.45 371 50 2.1 2.8 10 - 2.05 2
160500.0300 M3 0.5 371 56 2.7 3.5 12 18 2.5 2
160500.0400 M4 0.7 371 63 3.4 4.5 14 21 3.3 2
160500.0500 M5 0.8 371 70 4.9 6 15 25 4.2 3
160500.0600 M6 1 371 80 4.9 6 17 30 5 3
160500.0700 M8 1.25 376 90 4.9 6 20 - 6.8 3
160500.0800 M10 1.5 376 100 5.5 7 22 - 8.5 3
160500.0900 M12 1.75 376 110 7 9 24 - 10.2 3
160500.1000 M16 2 376 110 9 12 30 - 14 3
160500.1100 M20 2.5 376 140 12 16 36 - 17.5 4
160500.1200 M24 3 376 160 14.5 18 39 - 21 4

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 761
