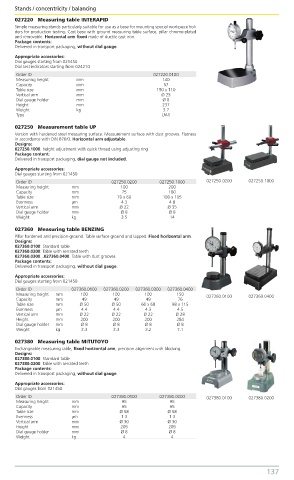

Stands / concentricity / balancing Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
027220 Measuring table INTERAPID
Simple measuring stands particularly suitable for use as a base for mounting special workpiece hol-
ders for production testing. Cast base with ground measuring table surface, pillar chrome-plated
and removable. Horizontal arm fixed made of ductile cast iron.
Package contents:
Delivered in transport packaging, without dial gauge.
Appropriate accessories:
Dial gauges starting from 021450
Dial test indicators starting from 024210
Order ID 027220.0100
Measuring height mm 140
Capacity mm 57
Table size mm 150 x 110
Vertical arm mm Ø 25
Dial gauge holder mm Ø 8
Height mm 237
Weight kg 3.7
Type UA1
027250 Measurement table UP
Version with hardened steel measuring surface. Measurement surface with dust grooves. Flatness
in accordance with DIN 876/0. Horizontal arm adjustable.
Designs:
027250.1000: height adjustment with quick thread using adjusting ring
Package content:
Delivered in transport packaging, dial gauge not included.
Appropriate accessories:
Dial gauges starting from 021450
Order ID 027250.0200 027250.1000 027250.0200 027250.1000
Measuring height mm 100 200
Capacity mm 75 180
Table size mm 70 x 60 180 x 105
Evenness µm 4.3 4.8
Vertical arm mm Ø 22 Ø 35
Dial gauge holder mm Ø 8 Ø 8
Weight kg 3.5 14
027360 Measuring table BENZING
Pillar hardened and precision-ground. Table surface ground and lapped. Fixed horizontal arm.
Designs:
027360.0100: Standard table
027360.0200: Table with serrated teeth
027360.0300...027360.0400: Table with dust grooves
Package contents:
Delivered in transport packaging, without dial gauge.
Appropriate accessories:
Dial gauges starting from 021450
Order ID 027360.0100 027360.0200 027360.0300 027360.0400
Measuring height mm 100 100 100 150 027360.0100 027360.0400
Capacity mm 49 49 49 76
Table size mm Ø 50 Ø 50 60 x 68 98 x 115
Evenness µm 4.4 4.4 4.3 4.5
Vertical arm mm Ø 22 Ø 22 Ø 22 Ø 28
Height mm 200 200 200 284
Dial gauge holder mm Ø 8 Ø 8 Ø 8 Ø 8
Weight kg 2.3 2.3 3.2 7.1
027380 Measuring table MITUTOYO
Exchangeable measuring table, fixed horizontal arm, precision alignment with blocking.
Designs:
027380.0100: Standard table
027380.0200: Table with serrated teeth
Package contents:
Delivered in transport packaging, without dial gauge.
Appropriate accessories:
Dial gauges from 021450
Order ID 027380.0100 027380.0200 027380.0100 027380.0200
Measuring height mm 95 95
Capacity mm 65 65
Table size mm Ø 58 Ø 58
Evenness µm 1.3 1.3
Vertical arm mm Ø 30 Ø 30
Height mm 205 205
Dial gauge holder mm Ø 8 Ø 8
Weight kg 4 4

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 137
