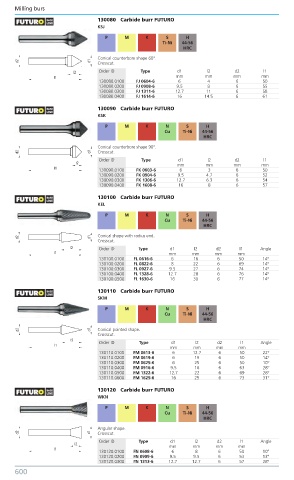

Page 609 - Benma | Blue book 5.0

Milling burs Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
130080 Carbide burr FUTURO
KSJ
P M K S H
Ti-Ni 44-56
HRC
Conical counterbore shape 60°.
Crosscut.
Order ID Type d1 l2 d2 l1
mm mm mm mm
130080.0100 FJ 0604-6 6 4 6 50
130080.0200 FJ 0908-6 9.5 8 6 55
130080.0300 FJ 1311-6 12.7 11 6 58
130080.0400 FJ 1614-6 16 14.5 6 61
130090 Carbide burr FUTURO
KSK
P M K N S H
Cu Ti-Ni 44-56
HRC
Conical counterbore shape 90°.
Crosscut.
Order ID Type d1 l2 d2 l1
mm mm mm mm
130090.0100 FK 0603-6 6 3 6 50
130090.0200 FK 0904-6 9.5 4.7 6 52
130090.0300 FK 1306-6 12.7 6.3 6 54
130090.0400 FK 1608-6 16 8 6 57
130100 Carbide burr FUTURO
KEL

P M K N S H
Cu Ti-Ni 44-56
HRC
Conical shape with radius end.
Crosscut.
Order ID Type d1 l2 d2 l1 Angle
mm mm mm mm
130100.0100 FL 0616-6 6 16 6 50 14°
130100.0200 FL 0822-6 8 22 6 69 14°
130100.0300 FL 0927-6 9.5 27 6 74 14°
130100.0400 FL 1328-6 12.7 28 6 76 14°
130100.0500 FL 1630-6 16 30 6 77 14°
130110 Carbide burr FUTURO
SKM

P M K N S H
Cu Ti-Ni 44-56
HRC
Conical pointed shape.
Crosscut.
Order ID Type d1 l2 d2 l1 Angle
mm mm mm mm
130110.0100 FM 0613-6 6 12.7 6 50 22°
130110.0200 FM 0619-6 6 19 6 50 14°
130110.0300 FM 0625-6 6 25 6 50 10°
130110.0400 FM 0916-6 9.5 16 6 63 28°
130110.0500 FM 1322-6 12.7 22 6 69 28°
130110.0600 FM 1625-6 16 25 6 73 31°

130120 Carbide burr FUTURO
WKN
P M K N S H
Cu Ti-Ni 44-56
HRC

Angular shape.
Crosscut.
Order ID Type d1 l2 d2 l1 Angle
mm mm mm mm
130120.0100 FN 0608-6 6 8 6 50 10°
130120.0200 FN 0909-6 9.5 9.5 6 53 13°
130120.0300 FN 1313-6 12.7 12.7 6 57 28°
