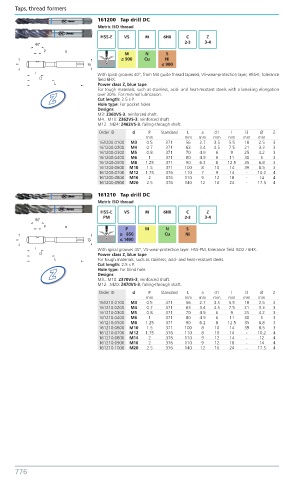

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
161200 Tap drill DC
Metric ISO thread
HSS-E VS M 6HX C Z
2-3 3-4
M N S
≤ 900 Cu Ni
≤ 900
With spiral grooves 40°, from M4 guide thread tapered, VS-wear-protection layer, HSS-E, tolerance
field 6HX.
Power class Z, blue tape
For tough materials, such as stainless, acid- and heat-resistant steels with a breaking elongation
Z over 30%. For minimal lubrication.
Cut length: 2.5 x P.
Hole type: For pocket holes.
Designs
M3: Z360VS-3, reinforced shaft.
M4...M10: Z362VS-3, reinforced shaft.
M12...M24: Z462VS-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
161200.0100 M3 0.5 371 56 2.7 3.5 5.5 18 2.5 3
161200.0200 M4 0.7 371 63 3.4 4.5 7.5 21 3.3 3
161200.0300 M5 0.8 371 70 4.9 6 9 25 4.2 3
161200.0400 M6 1 371 80 4.9 6 11 30 5 3
161200.0500 M8 1.25 371 90 6.2 8 12.5 35 6.8 3
161200.0600 M10 1.5 371 100 8 10 14 39 8.5 3
161200.0700 M12 1.75 376 110 7 9 14 - 10.2 4
161200.0800 M16 2 376 110 9 12 18 - 14 4
161200.0900 M20 2.5 376 140 12 16 24 - 17.5 4
161210 Tap drill DC
Metric ISO thread
HSS-E VS M 6HX C Z
PM 2-3 3-4
P M N S
≥ 850 Cu Ni
≤ 1400
With spiral grooves 45°, VS-wear-protection layer, HSS-PM, tolerance field ISO2 / 6HX.
Power class Z, blue tape
For tough materials, such as stainless, acid- and heat-resistant steels.
Cut length: 2.5 x P.
Z Hole type: For blind hole.
Designs
M3...M10: Z370VS-3, reinforced shaft.
M12...M20: Z470VS-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
161210.0100 M3 0.5 371 56 2.7 3.5 5.5 18 2.5 3
161210.0200 M4 0.7 371 63 3.4 4.5 7.5 21 3.3 3
161210.0300 M5 0.8 371 70 4.9 6 9 25 4.2 3
161210.0400 M6 1 371 80 4.9 6 11 30 5 3
161210.0500 M8 1.25 371 90 6.2 8 12.5 35 6.8 3
161210.0600 M10 1.5 371 100 8 10 14 39 8.5 3
161210.0700 M12 1.75 376 110 8 10 14 - 10.2 4
161210.0800 M14 2 376 110 9 12 14 - 12 4
161210.0900 M16 2 376 110 9 12 18 - 14 4
161210.1000 M20 2.5 376 140 12 16 24 - 17.5 4

776 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
