Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

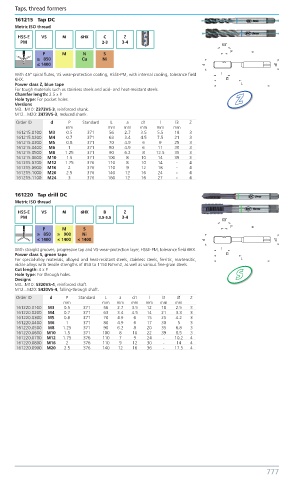

161215 Tap DC
Metric ISO thread
HSS-E VS M 6HX C Z
PM 2-3 3-4
P M N S
≥ 850 Cu Ni
≤ 1400
With 45° spiral flutes, VS wear-protection coating, HSSE-PM, with internal cooling, tolerance field
6HX.
Power class Z, blue tape
For tough materials such as stainless steels and acid- and heat-resistant steels.
Chamfer length: 2.5 x P.
Hole type: For pocket holes. Z
Versions
M3...M10: Z373VS-3, reinforced shank.
M12...M20: Z473VS-3, reduced shank.
Order ID d P Standard L a d1 l l3 Z
mm mm mm mm mm mm
161215.0100 M3 0.5 371 56 2.7 3.5 5.5 18 3
161215.0200 M4 0.7 371 63 3.4 4.5 7.5 21 3
161215.0300 M5 0.8 371 70 4.9 6 9 25 3
161215.0400 M6 1 371 80 4.9 6 11 30 3
161215.0500 M8 1.25 371 90 6.2 8 12.5 35 3
161215.0600 M10 1.5 371 100 8 10 14 39 3
161215.0700 M12 1.75 376 110 8 10 14 - 4
161215.0900 M16 2 376 110 9 12 18 - 4
161215.1000 M20 2.5 376 140 12 16 24 - 4
161215.1100 M24 3 376 160 12 16 27 - 4

161220 Tap drill DC
Metric ISO thread
HSS-E VS M 6HX B Z
PM 3.5-5.5 3-4
P M S
≥ 850 ≥ 900 Ni
≤ 1400 ≤ 1400 ≤ 1400
With straight grooves, progressive tap and VS-wear-protection layer, HSSE-PM, tolerance field 6HX.
Power class S, green tape
For special-alloy materials, alloyed and heat-resistant steels, stainless steels, ferritic, martensitic,
nickle alloys with tensile strengths of 850 to 1150 N/mm2, as well as various fine-grain steels.
Cut length: 4 x P.
Hole type: For through holes. S
Designs
M3...M10: S320VS-4, reinforced shaft.
M12...M20: S420VS-4, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
161220.0100 M3 0.5 371 56 2.7 3.5 12 18 2.5 3
161220.0200 M4 0.7 371 63 3.4 4.5 14 21 3.3 3
161220.0300 M5 0.8 371 70 4.9 6 15 25 4.2 3
161220.0400 M6 1 371 80 4.9 6 17 30 5 3
161220.0500 M8 1.25 371 90 6.2 8 20 35 6.8 3
161220.0600 M10 1.5 371 100 8 10 22 39 8.5 3
161220.0700 M12 1.75 376 110 7 9 24 - 10.2 4
161220.0800 M16 2 376 110 9 12 30 - 14 4
161220.0900 M20 2.5 376 140 12 16 36 - 17.5 4
