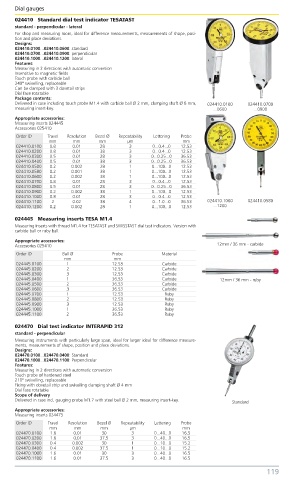

Dial gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
024410 Standard dial test indicator TESATAST
standard - perpendicular - lateral
For shop and measuring room, ideal for difference measurements, measurements of shape, posi-
tion and place deviations.
Designs:
024410.0100...024410.0600: standard
024410.0700...024410.0900: perpendicular
024410.1000...024410.1200: lateral
Features:
Measuring in 2 directions with automatic conversion
Insensitive to magnetic fields
Touch probe with carbide ball
240° swivelling, replaceable
Can be clamped with 3 dovetail strips
Dial face rotatable
Package contents:
Delivered in case including touch probe M1.4 with carbide ball Ø 2 mm, clamping shaft Ø 8 mm, 024410.0100 024410.0700
measuring insert-key. ...0600 ...0900
Appropriate accessories:
Measuring inserts 024445
Accessories 025410
Order ID Travel Resolution Bezel Ø Repeatability Lettering Probe
mm mm mm µm mm
024410.0100 0.8 0.01 28 3 0...0.4...0 12.53
024410.0200 0.8 0.01 38 3 0...0.4...0 12.53
024410.0300 0.5 0.01 28 3 0...0.25...0 36.53
024410.0400 0.5 0.01 38 3 0...0.25...0 36.53
024410.0500 0.2 0.002 28 1 0...100...0 12.53
024410.0580 0.2 0.001 38 1 0...100...0 12.53
024410.0600 0.2 0.002 38 1 0...100...0 12.53
024410.0700 0.8 0.01 28 3 0...0.4...0 12.53
024410.0800 0.5 0.01 28 3 0...0.25...0 36.53
024410.0900 0.2 0.002 38 1 0...100...0 12.53
024410.1000 0.8 0.01 28 3 0...0.4...0 12.53
024410.1100 2 0.02 38 4 0...1.0...0 36.53 024410.1000 024410.0580
024410.1200 0.2 0.002 28 1 0...100...0 12.53 ...1200
024445 Measuring inserts TESA M1.4
Measuring inserts with thread M1.4 for TESATAST and SWISSTAST dial test indicators. Version with
carbide ball or ruby ball.
Appropriate accessories:
Accessories 025410 12mm / 36 mm - carbide
Order ID Ball Ø Probe Material
mm mm
024445.0100 1 12.53 Carbide
024445.0200 2 12.53 Carbide
024445.0300 3 12.53 Carbide
024445.0400 1 36.53 Carbide 12mm / 36 mm - ruby
024445.0500 2 36.53 Carbide
024445.0600 3 36.53 Carbide
024445.0700 1 12.53 Ruby
024445.0800 2 12.53 Ruby
024445.0900 3 12.53 Ruby
024445.1000 1 36.53 Ruby
024445.1100 2 36.53 Ruby
024470 Dial test indicator INTERAPID 312
standard - perpendicular
Measuring instruments with particularly large span, ideal for larger ideal for difference measure-
ments, measurements of shape, position and place deviations.
Designs:
024470.0100...024470.0400: Standard
024470.1000...024470.1100: Perpendicular
Features:
Measuring in 2 directions with automatic conversion
Touch probe of hardened steel
210° swivelling, replaceable
Fixing with dovetail strip and swivelling clamping shaft Ø 4 mm
Dial face rotatable
Scope of delivery
Delivered in case incl. gauging probe M1.7 with steel ball Ø 2 mm, measuring insert-key. Standard
Appropriate accessories:
Measuring inserts 024475
Order ID Travel Resolution Bezel Ø Repeatability Lettering Probe
mm mm mm µm mm
024470.0100 1.6 0.01 30 3 0...40...0 16.5
024470.0200 1.6 0.01 37.5 3 0...40...0 16.5
024470.0300 0.4 0.002 30 1 0...10...0 15.2
024470.0400 0.4 0.002 37.5 1 0...10...0 15.2
024470.1000 1.6 0.01 30 3 0...40...0 16.5
024470.1100 1.6 0.01 37.5 3 0...40...0 16.5
