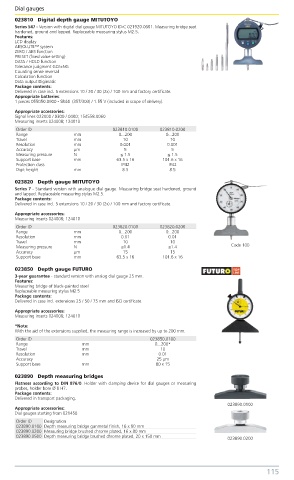

Dial gauges                          Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
      023810   Digital depth gauge MITUTOYO
      Series 547 - Version with digital dial gauge MITUTOYO ID-C 021920.0601. Measuring bridge seat
      hardened, ground and lapped. Replaceable measuring stylus M2.5.
      Features:
      LCD display
      ABSOLUTE™ system
      ZERO / ABS function
      PRESET (fixed value setting)
      DATA / HOLD function
      Tolerance judgment GO/±NG
      Counting sense reversal
      Calculation function
      Data output Digimatic
      Package contents:
      Delivered in case incl. 5 extensions 10 / 20 / 30 (2x) / 100 mm and factory certificate.
      Appropriate batteries:
      1 pieces 055050.0900 - SR44  (357/303) / 1.55 V (included in scope of delivery).
      Appropriate accessories:
      Signal lines 022000 /.0300 /.0400; 154558.0060
      Measuring inserts 024008; 124010
      Order ID                       023810.0100     023810.0200
      Range              mm            0...200        0...200
      Travel             mm              10             10
      Resolution         mm             0.001          0.001
      Accuracy           µm              5              5
      Measuring pressure  N             ≤ 1.5          ≤ 1.5
      Support base       mm            63.5 x 16     101.6 x 16
      Protection class                  IP42           IP42
      Digit height       mm             8.5             8.5
      023820   Depth gauge MITUTOYO
      Series 7 - Standard version with analogue dial gauge. Measuring bridge seat hardened, ground
      and lapped. Replaceable measuring stylus M2.5.
      Package contents:
      Delivered in case incl. 5 extensions 10 / 20 / 30 (2x) / 100 mm and factory certificate.
      Appropriate accessories:
      Measuring inserts 024008; 124010
      Order ID                       023820.0100     023820.0200
      Range              mm            0...200        0...200
      Resolution         mm             0.01           0.01
      Travel             mm              10             10
      Measuring pressure  N             ≤1.4           ≤1.4                Code 100
      Accuracy           µm              15             15
      Support base       mm            63.5 x 16     101.6 x 16
      023850   Depth gauge FUTURO
      3-year guarantee - standard version with analog dial gauge 25 mm.
      Features:
      Measuring bridge of black-painted steel
      Replaceable measuring stylus M2.5
      Package contents:
      Delivered in case incl. extensions 25 / 50 / 75 mm and ISO certificate.
      Appropriate accessories:
      Measuring inserts 024008; 124010
      *Note:
      With the aid of the extensions supplied, the measuring range is increased by up to 200 mm.
      Order ID                                   023850.0100
      Range                mm                      0...200*
      Travel               mm                        10
      Resolution           mm                       0.01
      Accuracy                                      25 µm
      Support base         mm                      80 x 15
      023890   Depth measuring bridges
      Flatness according to DIN 876/0. Holder with clamping device for dial gauges or measuring
      probes, holder bore Ø 8 H7.
      Package contents:
      Delivered in transport packaging.
                                                                          023890.0100
      Appropriate accessories:
      Dial gauges starting from 021450
      Order ID  Designation
      023890.0100 Depth measuring bridge gunmetal finish, 16 x 80 mm
      023890.0200 Measuring bridge brushed chrome plated, 16 x 80 mm
      023890.0500 Depth measuring bridge brushed chrome plated, 20 x 150 mm  023890.0200





      Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch  115
