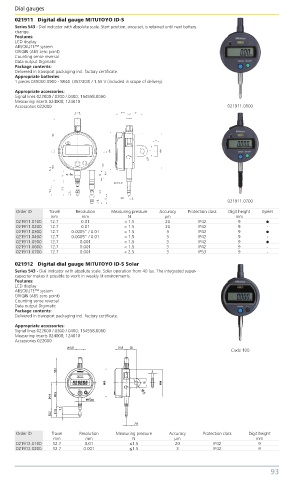

Page 98 - Benma | Blue book 5.0

Dial gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
021911 Digital dial gauge MITUTOYO ID-S
Series 543 - Dial indicator with absolute scale. Start position, once set, is retained until next battery
change.
Features:
LCD display
ABSOLUTE™ system
ORIGIN (ABS zero point)
Counting sense reversal
Data output Digimatic
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate batteries:
1 pieces 055050.0900 - SR44 (357/303) / 1.55 V (included in scope of delivery).
Appropriate accessories:
Signal lines 022000 /.0300 /.0400; 154558.0060
Measuring inserts 024008; 124010
Accessories 022000 021911.0100

021911.0700
Order ID Travel Resolution Measuring pressure Accuracy Protection class Digit height Eyelet
mm mm N µm mm
021911.0100 12.7 0.01 < 1.5 20 IP42 9
021911.0200 12.7 0.01 < 1.5 20 IP42 9 -
021911.0300 12.7 0.0005“ / 0.01 < 1.5 3 IP42 9
021911.0400 12.7 0.0005“ / 0.01 < 1.5 3 IP42 9 -
021911.0500 12.7 0.001 < 1.5 3 IP42 9
021911.0600 12.7 0.001 < 1.5 3 IP42 9 -
021911.0700 12.7 0.001 < 2.5 3 IP53 9 -
021912 Digital dial gauge MITUTOYO ID-S Solar
Series 543 - Dial indicator with absolute scale. Solar operation from 40 lux. The integrated super-
capacitor makes it possible to work in weakly lit environments.
Features:
LCD display
ABSOLUTE™ system
ORIGIN (ABS zero point)
Counting sense reversal
Data output Digimatic
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate accessories:
Signal lines 022000 /.0300 /.0400; 154558.0060
Measuring inserts 024008; 124010
Accessories 022000
Code 100

Order ID Travel Resolution Measuring pressure Accuracy Protection class Digit height
mm mm N µm mm
021912.0100 12.7 0.01 ≤1.5 20 IP42 9
021912.0200 12.7 0.001 ≤1.5 3 IP42 9

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 93
