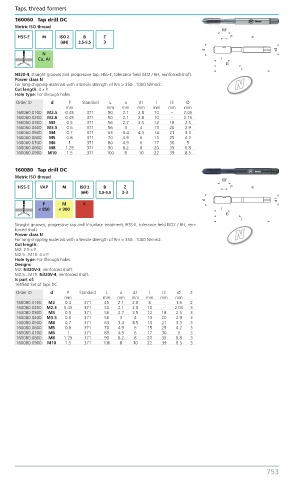

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 60060 Tap drill DC
Metric ISO thread
HSS-E M ISO 2 B Z
(6H) 3.5-5.5 3
N
Cu, AI

N320-4, straight grooves and progressive tap, HSS-E, tolerance field ISO2 / 6H, reinforced shaft.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...1000 N/mm2. N
Cut length: 4 x P.
Hole type: For through holes.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
160060.0100 M2.5 0.45 371 50 2.1 2.8 10 - 2.05
160060.0200 M2.6 0.45 371 50 2.1 2.8 10 - 2.15
160060.0300 M3 0.5 371 56 2.7 3.5 12 18 2.5
160060.0400 M3.5 0.6 371 56 3 4 13 20 2.9
160060.0500 M4 0.7 371 63 3.4 4.5 14 21 3.3
160060.0600 M5 0.8 371 70 4.9 6 15 25 4.2
160060.0700 M6 1 371 80 4.9 6 17 30 5
160060.0800 M8 1.25 371 90 6.2 8 20 35 6.8
160060.0900 M10 1.5 371 100 8 10 22 39 8.5

1 60080 Tap drill DC
Metric ISO thread
HSS-E VAP M ISO 2 B Z
(6H) 3.5-5.5 2-3
P M K
≤ 850 ≤ 900

Straight grooves, progressive tap and V-surface treatment, HSS-E, tolerance field ISO2 / 6H, rein-
forced shaft.
Power class N N
For long-chipping materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length:
M2: 2.5 x P.
M2.5...M10: 4 x P.
Hole type: For through holes.
Designs
M2: N320V-3, reinforced shaft.
M2.5...M10: N320V-4, reinforced shaft.
Is part of:
161560 Set of taps DC
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
160080.0100 M2 0.4 371 45 2.1 2.8 8 - 1.6 2
160080.0200 M2.5 0.45 371 50 2.1 2.8 10 - 2.05 3
160080.0300 M3 0.5 371 56 2.7 3.5 12 18 2.5 3
160080.0400 M3.5 0.6 371 56 3 4 13 20 2.9 3
160080.0500 M4 0.7 371 63 3.4 4.5 14 21 3.3 3
160080.0600 M5 0.8 371 70 4.9 6 15 25 4.2 3
160080.0700 M6 1 371 80 4.9 6 17 30 5 3
160080.0800 M8 1.25 371 90 6.2 8 20 35 6.8 3
160080.0900 M10 1.5 371 100 8 10 22 39 8.5 3
